Запчасти Case IH ADX3380 (D.13.B[18]) - FRONT HUB/SPINDLE ASSEMBLY - 8 BOLT HUB, 2 1/2 SPINDLE (ADX3380 (OPTIONAL) / ADX3430) D - Travel

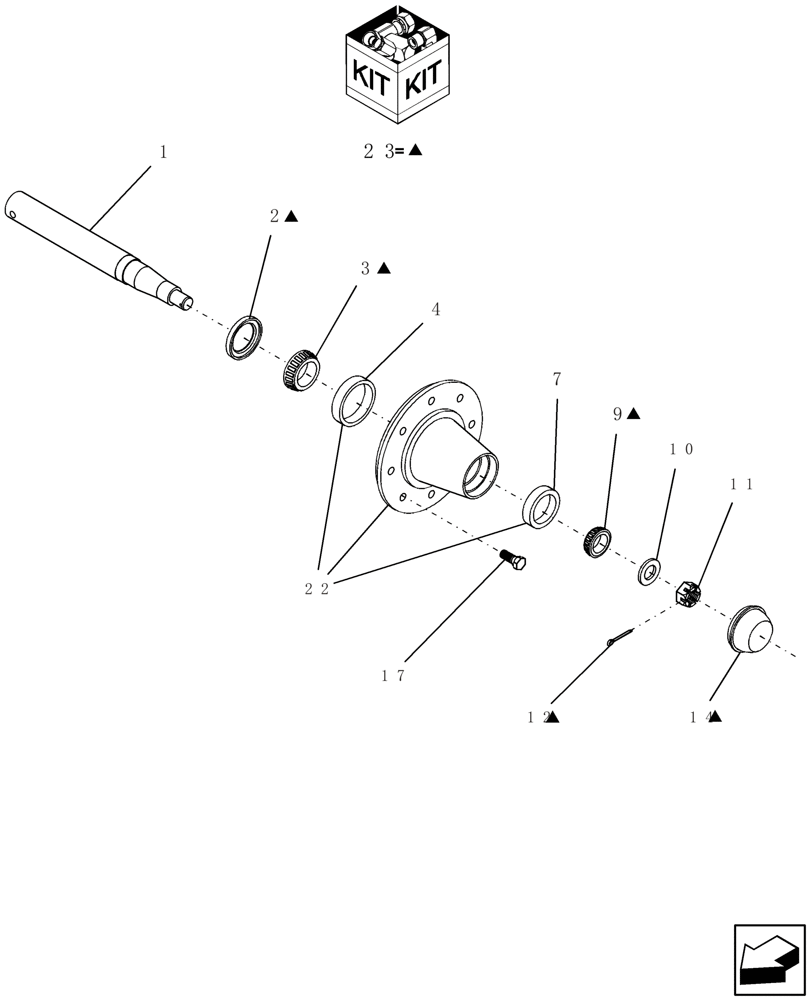

Схема запчастей Case IH ADX3380 - (D.13.B[18]) - FRONT HUB/SPINDLE ASSEMBLY - 8 BOLT HUB, 2 1/2 SPINDLE (ADX3380 (OPTIONAL) / ADX3430) D - Travel
4
12
11
10
9
1
2
22
7
14
23
3
17

Артикул

Название

Примечание

Количество

0

87436726

HUB

and spindle assembly H812-17.41" long

1шт.

1

87436721

SPINDLE

S812-2.5 x 17.44 sp

1шт.

Includes ref 10 and 11

1шт.

2

4622

OIL SEAL

SE17

1шт.

3

174127

TAPERED BEARING,2" ID x 1.192"

tm#3780

1шт.

4

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

1шт.

7

86977427

BEARING CUP,76.22mm OD x 19.05mm W

#2720

1шт.

9

86576988

BEARING ASSY,31.75mm ID x 62mm OD x 20.64mm W

tm#2790

1шт.

10

86900677

WASHER,1.03" ID x 2" OD x 0.18" Thk

1шт.

11

86020752

SLOTTED NUT

1"-14, G5

1шт.

12

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

14

87505192

HUB CAP

dc17

1шт.

17

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

8шт.

22

87505494

HUB

H812 assembly with cups, & holes for sprocket

1шт.

23

6812

WHEEL BEARING KIT

hub bearing completion - h812

1шт.

Includes ST773A,ST783A,419963A1,4622 and 80754

1шт.

Выбрано товаров: 16
