Запчасти Case IH ADX3380 (D.13.B[03]) - RIGHT REAR AXLES (ASN CBJ0005319) D - Travel

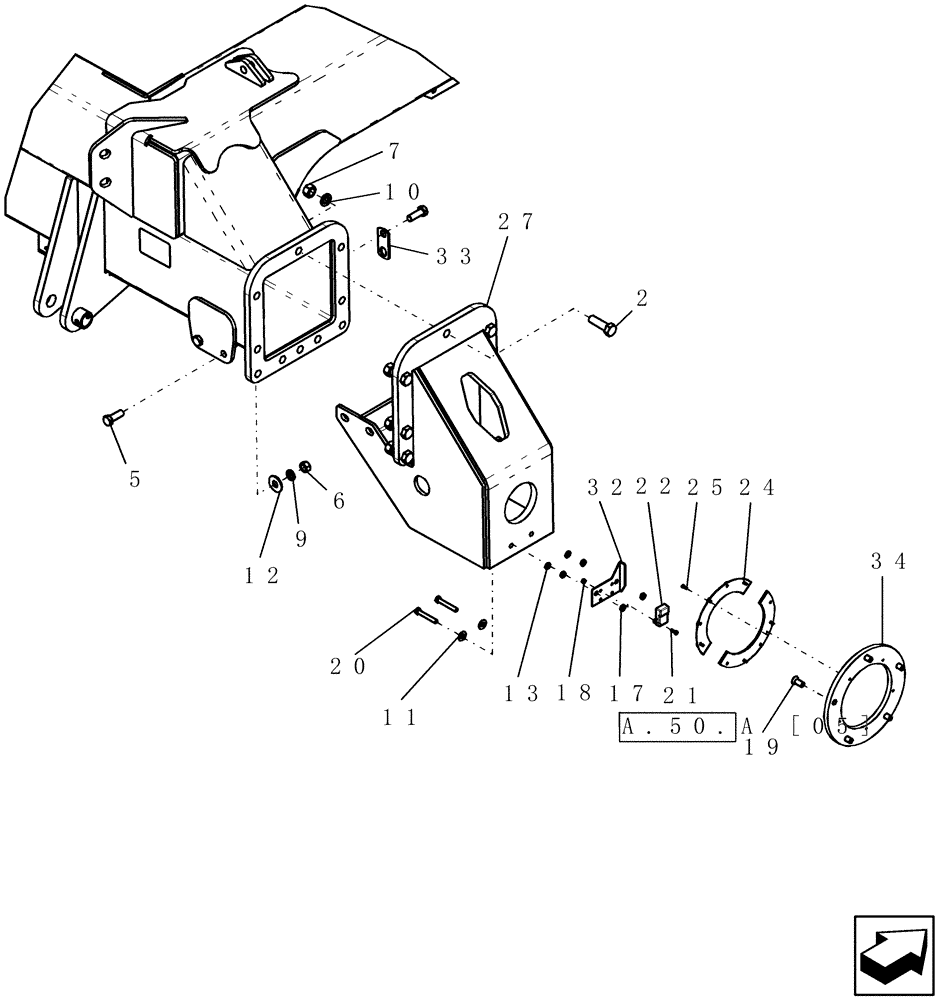

Схема запчастей Case IH ADX3380 - (D.13.B[03]) - RIGHT REAR AXLES (ASN CBJ0005319) D - Travel
10
22
21
24
13
7
18
17
12
33
2
11
32
5
27
9
19
6
25
20
34

Артикул

Название

Примечание

Количество

2

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

10шт.

5

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

6

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

7

280954

NUT,3/4"-10, G5

10шт.

9

12034871

WASHER

5/8"

4шт.

10

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

10шт.

11

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

12

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

13

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

17

87016560

JAM NUT,Jam, 3/8"-16, G5

6шт.

18

9148

LOCK NUT

#10-32, stainless steel

2шт.

19

51200126

SCREW

cap 1/2"-20 x 1 1/4" G8

5шт.

20

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

2шт.

21

9809

SCREW,Hex, #10 - 32 x 5/8", SST

mch #10-32 x 5/8" hh ss

2шт.

22

13919

SENSOR

shaft

1шт.

Refer to Sensors page for details

1шт.

24

21681

RING

sensor half of 60 tooth

2шт.

25

22007

SELF-TAP SCREW

#8 x 5/8" fh b pi

5шт.

27

87426807

AXLE HOUSING

32" wheel 4.5"

1шт.

32

GL-734

SENSOR

scraper

1шт.

33

GL-954

CABLE RETAINER

harness

1шт.

34

GM-325

RING

backup

1шт.

Выбрано товаров: 22
