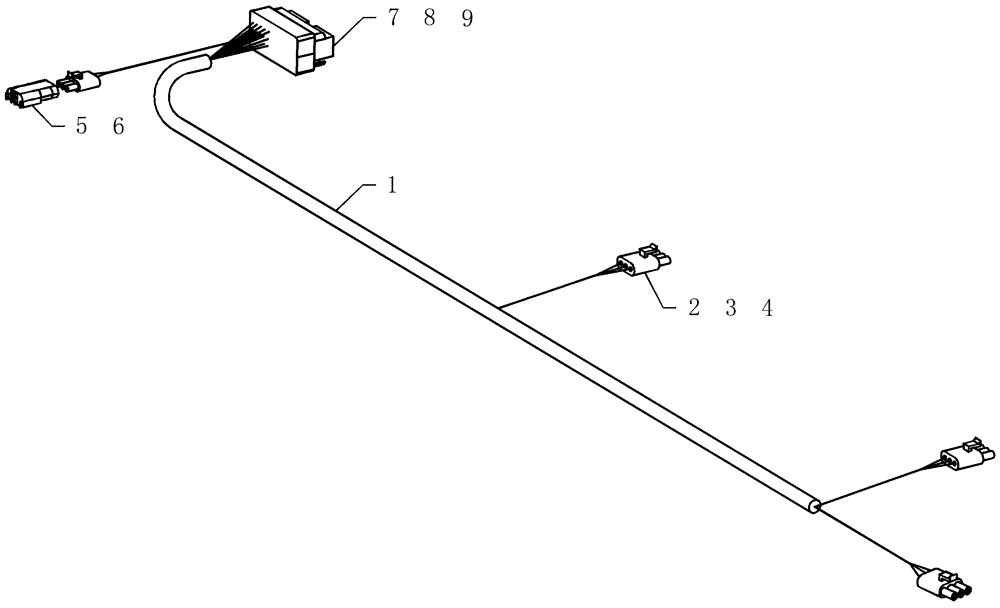

Запчасти Case IH ADX3380 (A.50.A[31]) - AIR CONTROL HARNESS A - Distribution Systems

1

15616

HARNESS

air control feedback

1шт.

2

87644909

WIRE CONNECTOR,Female, 3 Pins

plastic 3c plug

4шт.

3

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

socket 18-20awg

12шт.

4

441656A1

ELEC CONNECTOR

seal ppl 2.15-1.6mm

12шт.

5

245485C1

ELEC CONNECTOR,Male, 3 Pin

plastic 3c receptacle

1шт.

6

225127C1

PLUG

cavity, green rubber

3шт.

7

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

30c b plug

1шт.

8

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

socket 16-20awg

12шт.

9

14999

ELEC CONNECTOR

plug, cavity, cinch

18шт.
