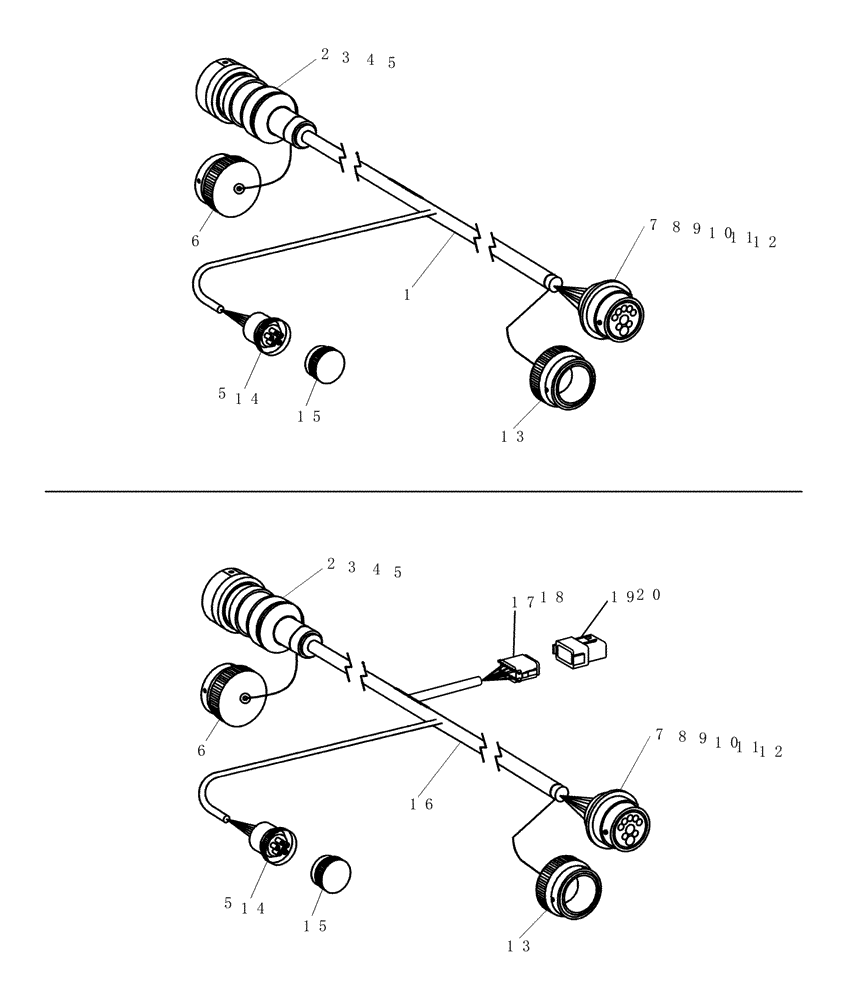

Запчасти Case IH ADX3380 (A.50.A[19]) - TOW BEHIND SEED TOOL HARNESS A - Distribution Systems

1

13929V3

HARNESS

seed tool tow behind 14.5 m nh3

1шт.

2

279043A1

ELEC CONNECTOR,Female, 9 Pin

metal 9c plug

1шт.

3

425083A1

POWER SOCKET

contact socket 8-10 Deutsch

2шт.

4

900302

TERMINAL

12-14awg

2шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

10шт.

6

788614

PROTECTING COVER,2" OD x 1.7" Long

dust 23 con rcp Deutsch

1шт.

7

352506A1

ELEC CONNECTOR,Male, 9 Pin

metal 9c receptacle

1шт.

8

225348C1

ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2

pin 16-18awg

4шт.

9

51200870

ELEC. TERMINAL PIN,8 - 10 SAE

contact pin 8-10 Deutsch

2шт.

10

280386A1

ELEC CONNECTOR,Nickel, 2.0 - 3.0mm

12-14awg

2шт.

11

51200012

LOCK WASHER

split 1 3/4" id x 3/32" tk

2шт.

12

459329C1

NUT

1 11/16"-18 aluminum 3/16" thick

2шт.

13

245041C1

CAP

dust 23 cond plug Deutsch

1шт.

14

425050A1

ELEC CONNECTOR,Female, 6 Pin

plastic 6c plug

1шт.

15

14045

DUST CAP

6 cond rcp Deutsch

1шт.

16

13929V3

HARNESS

seed tool tow behind 14.5 m nh3

1шт.

Only required when customer requests the NH3 option

1шт.

17

87700156

CONTACT HOUSING,Female, 12 Pole

Deutsch 12 way dtm plug, grey

1шт.

18

223674A1

WEDGE

lock 12c plug

1шт.

19

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

elec plastic 12c receptacle

1шт.

20

225055C1

PLUG

connector 20awg

1шт.
