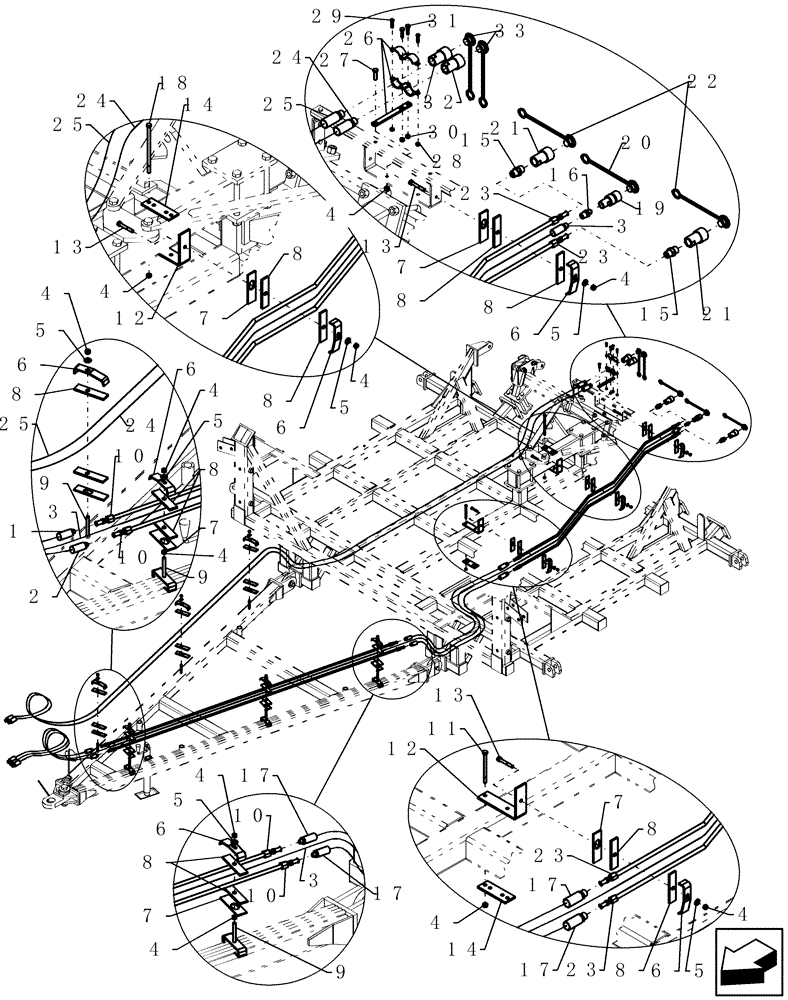

Запчасти Case IH ADX3380 (A.10.A[20]) - TBH HYD LINES ACROSS ATX (ASN CBJ0004442) A - Distribution Systems

1

GR-250A

HYDRAULIC HOSE

Ext fan pressure

1шт.

2

GR-251A

HYDRAULIC HOSE

Ext fan return

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE ASSY CASE DRAIN 360 FL

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE ASSY CASE DRAIN 450 FL

1шт.

4

232-1446

NUT,3/8"-16, GC

10шт.

5

1013043

WASHER

3/8" SAE

6шт.

6

1026712

CLAMP

5"

6шт.

7

1026713

CLAMP

backing

6шт.

8

1026714

ISOLATOR

neoprene 1/4" tk pln

12шт.

9

1026677

STUD

3/8" x 3 1/4" nc gr d zp

3шт.

10

350191A1

HYD TUBE,25.4 mm OD, 2743 mm Length

assy 1" x 108" -16 jicfsw

2шт.

11

280177

BOLT,Hex, 3/8" - 16 x 5", Gr 5

2шт.

12

87442733

BRACKET

bar-angle

1шт.

13

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

3шт.

14

1026123

BAR

bolting

2шт.

15

86512927

HYD CONNECTOR,1-5/16" - 12 JIC x 1" - 11-1/2 NPT

2шт.

16

132341

HYD CONNECTOR,3/4" - 16 JIC x 1/2" - 14 NPT

1шт.

17

351463A1

HYDRAULIC HOSE

1" x 90" fl

2шт.

17

350187A1

HYDRAULIC HOSE

1" x 180" fl

2шт.

18

280284

BOLT,Hex, 3/8" - 16 x 7", Gr 5

2шт.

19

1994568C1

COUPLING, QUICK, FEM

1/2" fpt

1шт.

20

86592083

DUST CAP

pioneer coupler - 1/2"

1шт.

21

6935

COUPLING, QUICK, FEM

3/4"

1шт.

22

6934

PLUG

dust, pioneer coupler - 3/4"

1шт.

23

351446A1

HYD TUBE

1" x 62 19/32" fl bent

2шт.

24

GR-252A

HYDRAULIC HOSE

Ext auger pressure

1шт.

24

GR-253A

HYDRAULIC HOSE

Ext auger pressure

1шт.

25

GR-254A

HYDRAULIC HOSE,0.75" ID x 384.00"

Auger return

1шт.

25

GR-255A

HYDRAULIC HOSE,0.75" ID x 432.00"

Ext auger return

1шт.

26

GE-202

CLAMP

for two 3/4" couplers

1шт.

27

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

28

280736

NUT,5/16"-18, GC

2шт.

29

3236

SELF-TAP SCREW

1/4"-20 x 1 1/4" oh pi plt

2шт.

30

280129

NUT,1/4"-20

2шт.

31

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

32

6935

COUPLING, QUICK, FEM

3/4"

1шт.

33

6934

PLUG

dust, pioneer coupler - 3/4"

1шт.

34

87557085

CABLE TIE

CABLE STRAP 24" with stainless locking clip

10шт.
