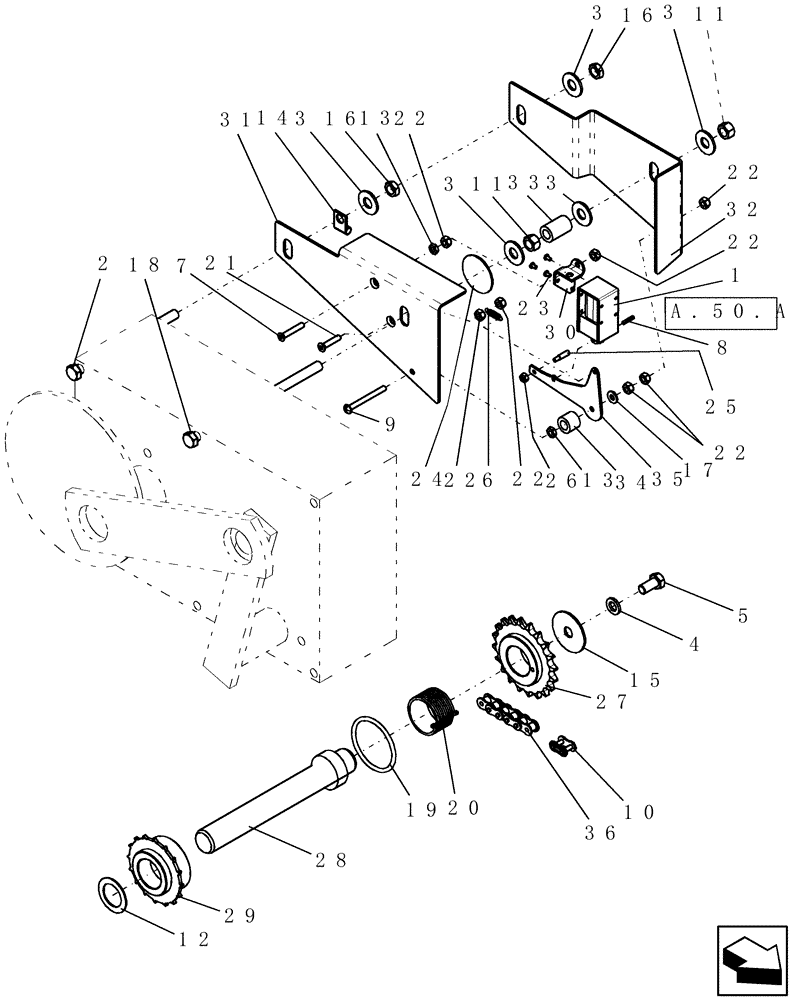

Запчасти Case IH ADX3380 (L.10.F[09]) - WRAP SPRING CLUTCH L - Field Processing

0

GI-475A

CLUTCH

assembly, actuator housing

1шт.

1

51200032

SOLENOID

assembly, clutch

1шт.

Refer to Cable Terminator/Clutch Solenoid page for details

1шт.

2

20304

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

1шт.

3

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

5

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

1шт.

6

425031A1

TENSION SPRING

1/64" wr 15/64" od x 7/8" long

1шт.

7

425032A1

SCREW

cap #10-32 x 1 1/4" fh sq

1шт.

8

21757

ROLL PIN

3 mm x 14 mm

1шт.

9

173-259

SCREW,Sl Rnd Hd, #10 - 32 x 2"

1шт.

10

25195

LINK,12.7mm Pitch

roller conn 40-1

1шт.

11

9628503

NUT,3/8"-16, G5

2шт.

12

86624168

WASHER,1.03" ID x 1.5" OD x 0.03" Thk

1шт.

13

87825

NUT,#10-32

2шт.

14

272535

CLAMP,1/8", Insul, 1/4" Bolt

1шт.

15

5271

WASHER,0.44" ID x 1.75" OD x 0.08" Thk

7/16" id 1 3/4" 5/64"

1шт.

16

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

17

88612

WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk

1шт.

18

7087

BOLT

3/8"-16 x 7", G5, 2 1/2" thread

1шт.

19

7170

O-RING

2 1/16" id x 2 3/8" id x .139" wide

1шт.

20

7301

TORSION SPRING

CW .092" Wire x 1.45" ID x 1" long

1шт.

21

7525

SCREW,#10 - 32 x 1"

mch #10-32 x 1" fh sq

1шт.

20

51200048

TORSION SPRING

ccw 3/32" x 1 27/64" x 1 1/64"

1шт.

22

20332

LOCK NUT,#10-32, GB

7шт.

23

7532

SCREW,Pan Hd, M3 x 5mm

mch M3 x 5 mm ph slt

3шт.

24

8675

PAD

protective, adhesive back, 1 5/8" Diameter x 1/16" thick, UHMW

1шт.

25

84147800

PIN

latch arm

1шт.

26

231-14406

LOCK NUT,#6-32, GB

1шт.

27

GH-223

SPROCKET

assembly, driven

1шт.

28

GH-224

SHAFT

output, c/w stator ring

1шт.

29

GH-884

SPROCKET

control cw

1шт.

29

87429000

SPROCKET

control ccw

1шт.

30

GI-476

BRACKET

solenoid mount

1шт.

31

GI-477

MOUNTING PLATE

clutch housing

1шт.

32

GI-478

COVER

plate clutch housing

1шт.

33

GI-479

SPACER

, Serial Range: mount-cover

1шт.

34

GI-480

SPACER

latch arm - pvc

1шт.

35

GI-481

LATCH

arm clutch housing

1шт.

36

GL-680

CHAIN (AG),Meter Roller Drive

meter roller drive

1шт.

100

GL-700.13

DECAL

clutch sprocket

1шт.

Not Shown

1шт.
