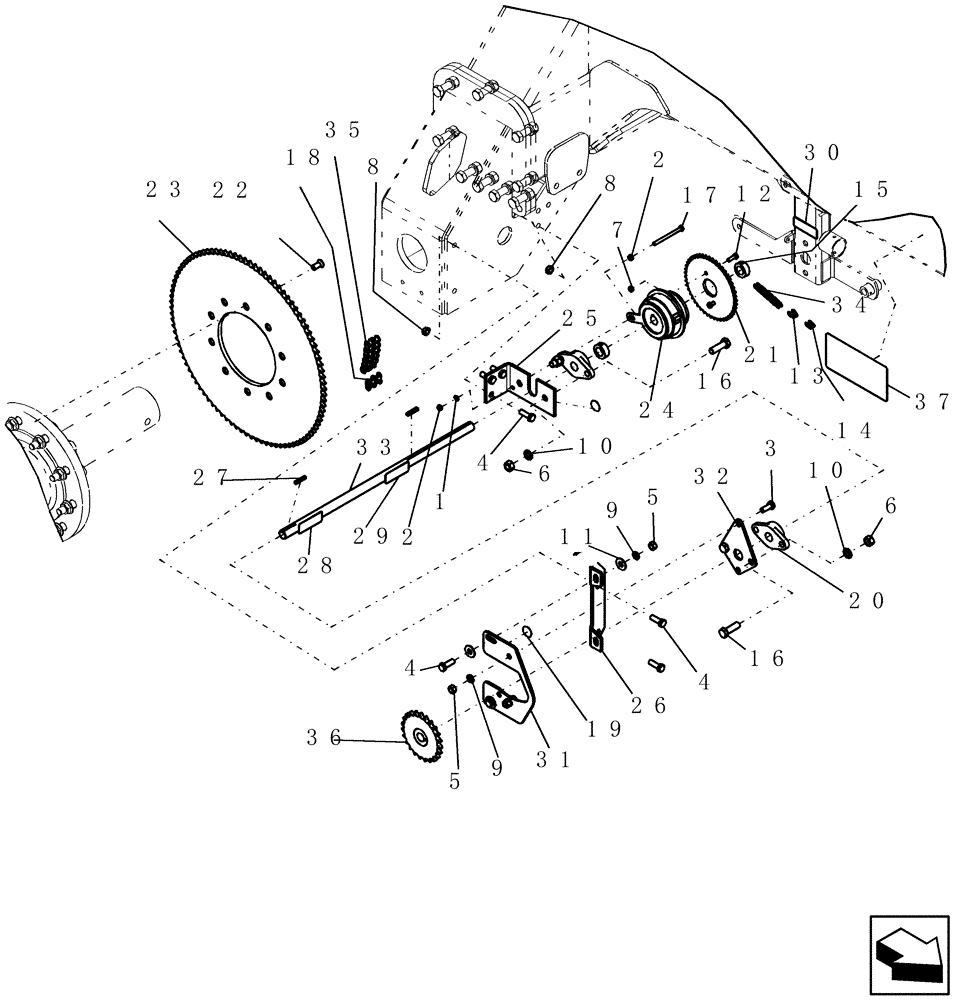

Запчасти Case IH ADX3380 (L.10.F[02]) - MECHANICAL DRIVE - FROM AXLES (ASN CBJ0005319) L - Field Processing

1

80681

LOCK WASHER,5/16"

1шт.

2

9635082

NUT,5/16" - 18, Gr 5

2шт.

3

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

4

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

7шт.

5

280431

NUT,1/2"-13, G5

4шт.

6

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

7

281010

LOCK NUT,7/8"-14, GC

2шт.

8

86992215

LOCK NUT,1/2"-13, GC

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

10

12034871

WASHER

5/8"

4шт.

11

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

12

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

13

2245

LINK,12.7mm Pitch

connector, offset 40-1

1шт.

14

25195

LINK,12.7mm Pitch

roller conn 40-1

1шт.

15

2259

COLLAR

1" lock

2шт.

16

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

17

88964

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

18

241-1326

LINK,12.7mm Pitch

chain, connector 60-2 with clip

1шт.

19

6565

DECAL

grease 10 hours

2шт.

20

7086

BEARING ASSY,25.4mm ID

with 2-hole flange

2шт.

21

GH-347

SPROCKET

47 tooth

1шт.

22

51200126

SCREW

cap 1/2"-20 x 1 1/4" G8

1шт.

23

9306

SPROCKET

60w96

1шт.

Single Wheels

1шт.

23

9308

SPROCKET

dual wheel - 60w96

1шт.

Dual Wheels

1шт.

23

280156

BOLT,Hex, 3/4" - 16 x 3 1/2", Gr 8

10шт.

Used to mount the Dual sprocket to the single hub

1шт.

23

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

10шт.

Used to mount the Dual sprocket to the single hub

1шт.

23

9823966

NUT,3/4"-16, G8

10шт.

Used to mount the Dual sprocket to the single hub

1шт.

24

87424061

KIT

magnetic clutch with lockout

1шт.

25

87429222

BRACKET

mount, inner mechanical drive

1шт.

26

87429353

BRACKET

mount, mechanical drive outer

1шт.

27

GD-560

KEY

1/4" sq x 1 1/2" long

2шт.

28

GI-500.11

DECAL

driven 1

1шт.

29

GI-500.12

DECAL

drive 2

1шт.

30

GI-500.13

DECAL

driven 2

1шт.

31

GL-323

PLATE

mounting bearing - outer wheel housing

1шт.

32

GL-324

BLOCK

bearing mounting plate, outer

1шт.

33

GL-326

CROSS SHAFT

meter drive axle

1шт.

34

GL-360

CHAIN (AG)

meter drive outer

1шт.

35

GL-366

CHAIN,Drive, 1828.8mm L

drive 96 tooth drive sprocket

1шт.

36

GL-367

SPROCKET

cross shaft - 60w23

1шт.

37

GL-700.23

WARNING DECAL

Rotating Parts

1шт.
