Запчасти Case IH ADX3380 (L.10.B[09]) - AUGER HOPPER ASSEMBLY L - Field Processing

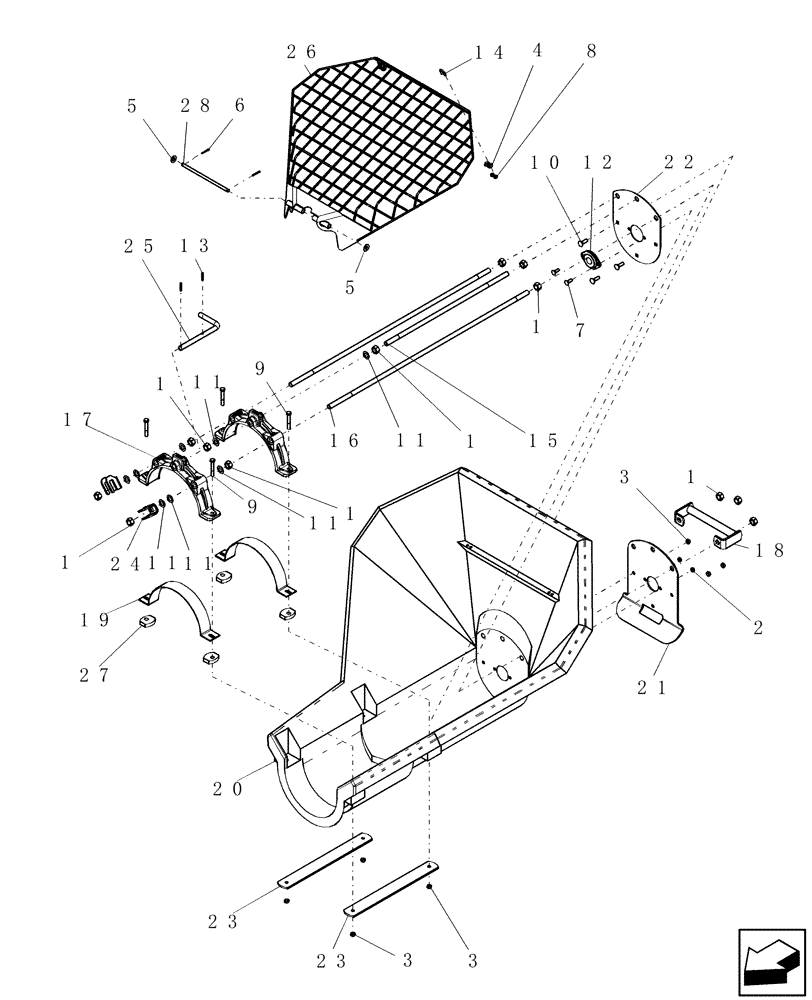

Схема запчастей Case IH ADX3380 - (L.10.B[09]) - AUGER HOPPER ASSEMBLY L - Field Processing
24
11
5
6
5
17
1
13
20
26
11
7
25
8
11
14
16
28
1
1
19
4
1
18
27
11
11
3
21
15
10
23
12
23
1
1
3
22
9
9
3
2

Артикул

Название

Примечание

Количество

1

280374

NUT,Hex, 5/8" - 11, Gr 5

12шт.

2

281010

LOCK NUT,7/8"-14, GC

2шт.

3

88902

NUT,3/8"-16

7шт.

4

95-21031

WASHER,1/4"

4шт.

5

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

6

80755

COTTER PIN,1/8" OD x 1" L

2шт.

7

280827

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

2шт.

8

280129

NUT,1/4"-20

4шт.

9

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

4шт.

10

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

3шт.

11

87325926

WASHER,0.62" ID x 1.12" OD x 0.05" Thk

5/8" id x 1 1/8" 18ga

8шт.

12

9549

FLANGED BEARING

c/w flange 2-hole

1шт.

12a

574844

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

1шт.

12b

86548974

FLANGE,Bearing

2шт.

12c

87431217

COLLAR,25.43mm ID x 38.1mm OD x 13.5mm W

Includes Set Screw

1шт.

13

87020816

LOCK PIN,4.76mm OD x 31.75mm L

2шт.

14

9917

U-BOLT

ur 1/4"-20 x 3/8" w x 7/8" d, GR5

2шт.

15

23965

ROD

auger cage - short

1шт.

16

51200117

ROD

auger cage, long, 10" auger

2шт.

17

87506226

CAGE

auger hopper

2шт.

18

GL-115

STRAP

handle, hopper

1шт.

19

GL-288

CLAMP

bearing surface auger

2шт.

20

GL-432

HOPPER

auger - 10"

1шт.

21

GL-640

SUPPORT

foot auger

1шт.

22

GL-641

PLATE

end auger hopper

1шт.

23

GL-668

SUPPORT

hopper

2шт.

24

GL-763

HOOK

hopper retainer

2шт.

25

GL-798

PIN

indexing - hopper

1шт.

26

GL-806

SHIELD

SHIELD 10IN AUGER

1шт.

27

GL-808

SPACER

auger hopper

4шт.

28

GL-809

PIVOT PIN

auger hopper shield

1шт.

Выбрано товаров: 31
