Запчасти Case IH ADX3360 (E.30.A[01]) - PLATFORMS AND EXTERNAL LADDERS E - Body and Structure

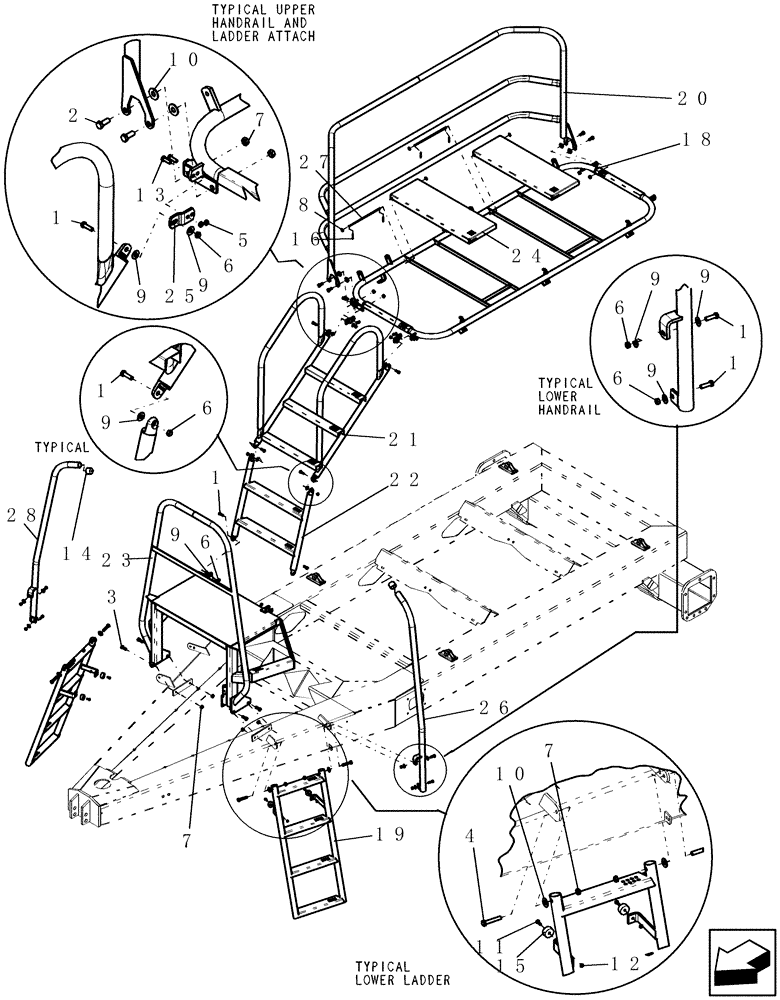

Схема запчастей Case IH ADX3360 - (E.30.A[01]) - PLATFORMS AND EXTERNAL LADDERS E - Body and Structure
1
2
24
1
6
15
9
9
4
12
18
3
6
28
11
22
5
27
25
10
9
1
9
6
20
21
9
8
13
14
6
10
7
23
6
7
1
7
9
1
19
16
26
9

Артикул

Название

Примечание

Количество

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

11шт.

2

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

3

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

4

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

4шт.

5

281010

LOCK NUT,7/8"-14, GC

4шт.

6

88902

NUT,3/8"-16

10шт.

7

280129

NUT,1/4"-20

12шт.

8

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

9

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

14шт.

10

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

11

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

12

280129

NUT,1/4"-20

4шт.

13

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

14

3419

CAP

vinyl 1 5/8" x 1 1/2"

2шт.

15

51200147

FOOT

rubber, 1 1/2" od x 1/4" id x 3/4"

4шт.

16

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

4шт.

18

GL-186

PLATFORM

tank top

1шт.

19

GL-188

LADDER

hitch frame

2шт.

20

GL-190

HANDRAIL

tank

1шт.

21

GL-192

LADDER

upper

1шт.

Common to both 380 and 430 bushel carts

1шт.

22

GL-193

LADDER

lower tank

1шт.

Only used on 380 bushel carts

1шт.

22

87420825

LADDER

lower tank 430 bushel cart

1шт.

Only used on 430 bushel carts

1шт.

23

GL-330

PLATFORM

frame

1шт.

24

GL-350

GRATING

top platform - flip up

2шт.

25

GL-351

LUG

ladder top platform

2шт.

26

GL-356

HANDRAIL

frame LH

1шт.

27

GL-747

PIN

step grating platform

2шт.

28

GL-755

RAIL ASSY.

right - frame mount

1шт.

Выбрано товаров: 31
