Запчасти Case IH ADX3360 (E.10.C[03]) - REAR FRAME HOSE TRAYS AND INTERMEDIATE MANIFOLD SUPPORT (BTW CBJ0005001 & CBJ0005030) E - Body and Structure

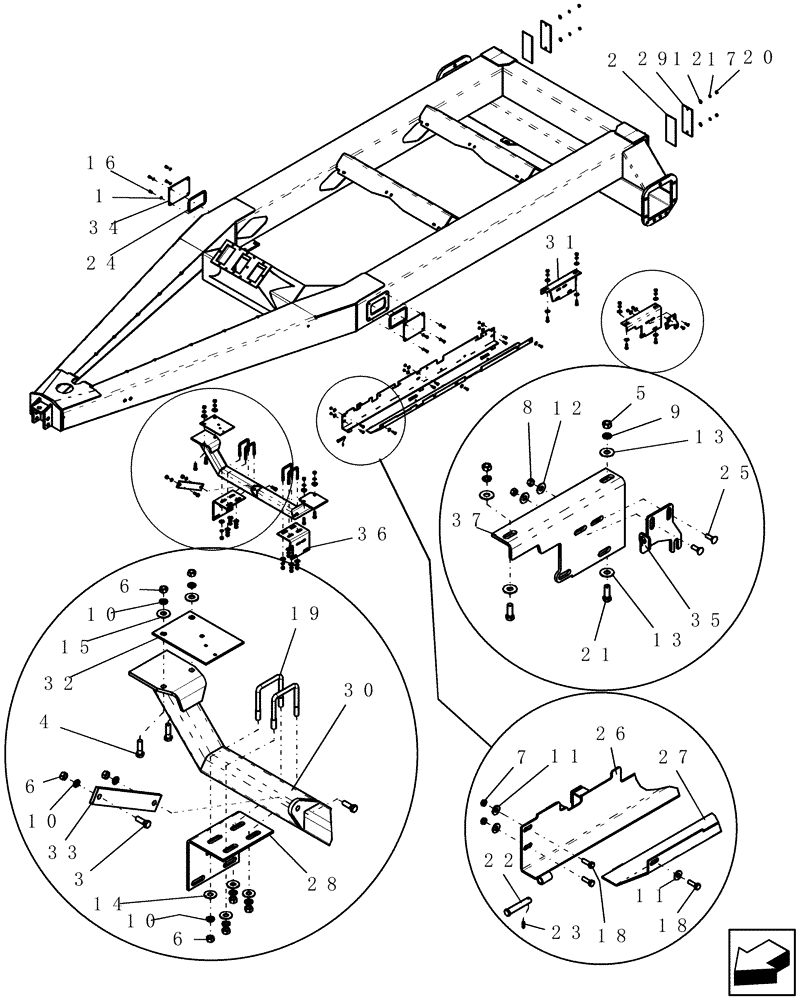

Схема запчастей Case IH ADX3360 - (E.10.C[03]) - REAR FRAME HOSE TRAYS AND INTERMEDIATE MANIFOLD SUPPORT (BTW CBJ0005001 & CBJ0005030) E - Body and Structure
17
11
24
32
25
14
8
13
34
10
7
18
10
33
29
26
1
10
20
21
11
36
6
27
6
2
19
3
12
31
6
15
4
16
28
22
23
13
35
37
30
9
18
5
12

Артикул

Название

Примечание

Количество

1

80681

LOCK WASHER,5/16"

8шт.

2

425487A1

KIT

sponge 1 1/4" x 3/4" cell, adhesive

2шт.

Must be ordered in multiples of 12.5

1шт.

2

GL-249

FOAM

end cover frame

2шт.

Cut 1' from bulk roll marked 425489A1

1шт.

3

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

4

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

5

280717

NUT,7/16"-14, G5

4шт.

6

9635082

NUT,5/16" - 18, Gr 5

14шт.

7

281010

LOCK NUT,7/8"-14, GC

6шт.

8

88902

NUT,3/8"-16

2шт.

9

81547

LOCK WASHER,7/16"

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

14шт.

11

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

9шт.

12

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

6шт.

13

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

8шт.

14

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

15

18606

WASHER,0.62" ID x 1.47" OD x 0.11" Thk

4шт.

16

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

17

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

18

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

9шт.

19

51200064

U-BOLT

us 1/2" x 3 1/8" w x 4" d 1 1/4" thread

4шт.

20

9628503

NUT,3/8"-16, G5

4шт.

21

9627887

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

4шт.

22

6855

CLEVIS PIN

1/2" x 2 3/4" fl

3шт.

23

38-11010

LOCK PIN,5/32" x 5/8", Slotted

3шт.

24

425470A1

SEAL

sponge 1/2" wide x 1/4" thick x 22" long - Cut 22" from 25' roll marked 7306P

2шт.

Cut 22" from 25' roll marked 7603P

1шт.

24

86992328

SEAL

sponge 1/2" w x 1/4" thick adhesive

2шт.

Must be ordered in multiples of 25

1шт.

25

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

26

GL-112

TRAY

hose, back cover

1шт.

27

GL-113

COVER

flip up, hose tray

1шт.

28

GL-135

BRACKET

mount, manifold support

1шт.

29

GL-148FR

COVER ASSY

end frame

2шт.

30

GL-160

SUPPORT

intermediate manifold

1шт.

31

GL-166

BRACKET

mount, intermediate manifold - right

1шт.

32

GL-602

MOUNTING PLATE

1шт.

33

GL-739

BRACKET

Intermediate Manifold

1шт.

34

GM-279FR

COVER

plate air outlet red

2шт.

35

GM-321

BRACKET

mount ball valve

1шт.

36

GM-329

BRACKET

mount, intermediate manifold - left

1шт.

37

GM-331

BRACKET

mount, intermediate manifold - left

1шт.

100

GM-100FR

FRAME

360 / 380

1шт.

Not Shown

1шт.
