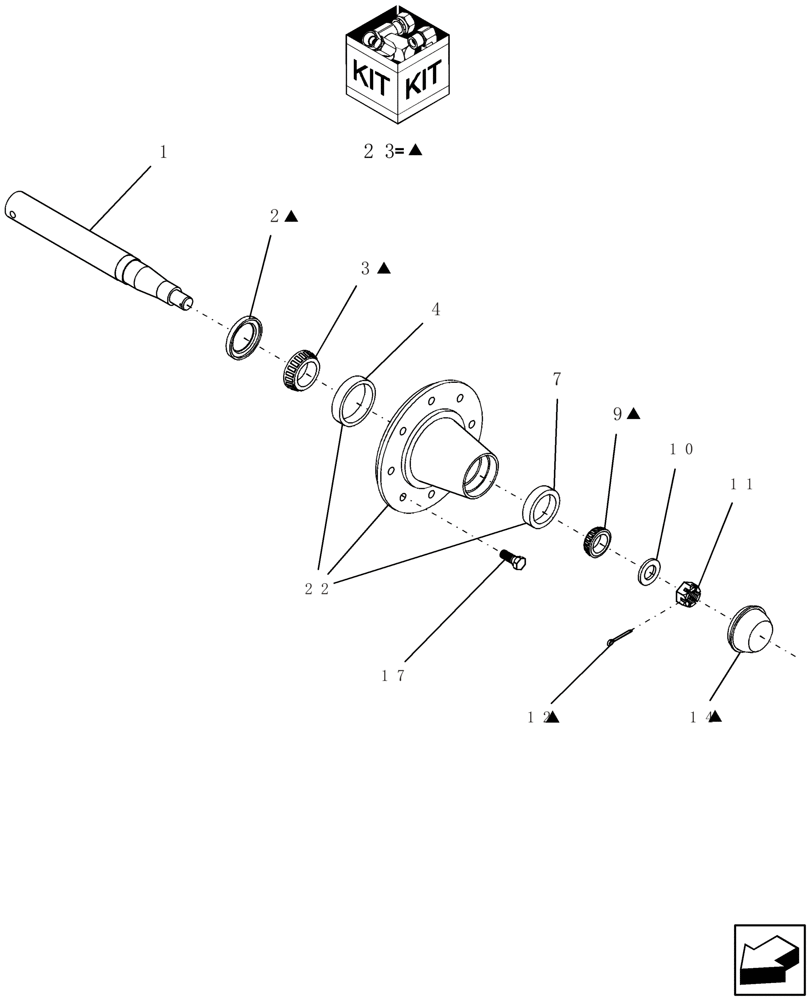

Запчасти Case IH ADX3360 (D.13.B[17]) - FRONT HUB/SPINDLE ASSEMBLY - 8 BOLT HUB, 2" SPINDLE (ADX3380) D - Travel

0

GH-811A

HUB

and spindle assembly H811-17.13" long, Serial Range: -CBJ0005305

1шт.

Includes ref 14, 22 and 23

1шт.

0

87436722

HUB

and spindle assembly H811 with 17 1/8" long spindle, Start Serial: CBJ0005306

1шт.

1

87436667

SPINDLE

s811 2 x 17.13 4340 htsr, Start Serial: CBJ0005306

1шт.

Includes ref 10 and 11

1шт.

2

491715R91

OIL SEAL

oil SE16

1шт.

3

512725

BEARING CONE,45.62mm ID x 25.4mm W

#25590

1шт.

4

86900365

BEARING CUP,82.96mm OD x 19.05mm W

#25520

1шт.

7

86516462

BEARING CUP,73.03mm OD x 19.05mm W

#25821

1шт.

9

86516471

BEARING CONE,34.92mm ID x 24.61mm W

#25877

1шт.

10

5871

WASHER

1 1/64" id x 2" x 5/16"

1шт.

11

86020752

SLOTTED NUT

1"-14, G5

1шт.

12

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

14

87505192

HUB CAP

dc17

1шт.

17

G49036

WHEEL BOLT

wheel 9/16"-18 x 1 1/4", G5, WB12

8шт.

22

87505495

HUB

H811-3 assembly with cups and zerk hole

1шт.

Includes ref 4, 7 and eight 17

1шт.

23

6811

WHEEL BEARING KIT

completion - h811

1шт.

Includes ref 2, 3, 9, 12 and 14

1шт.
