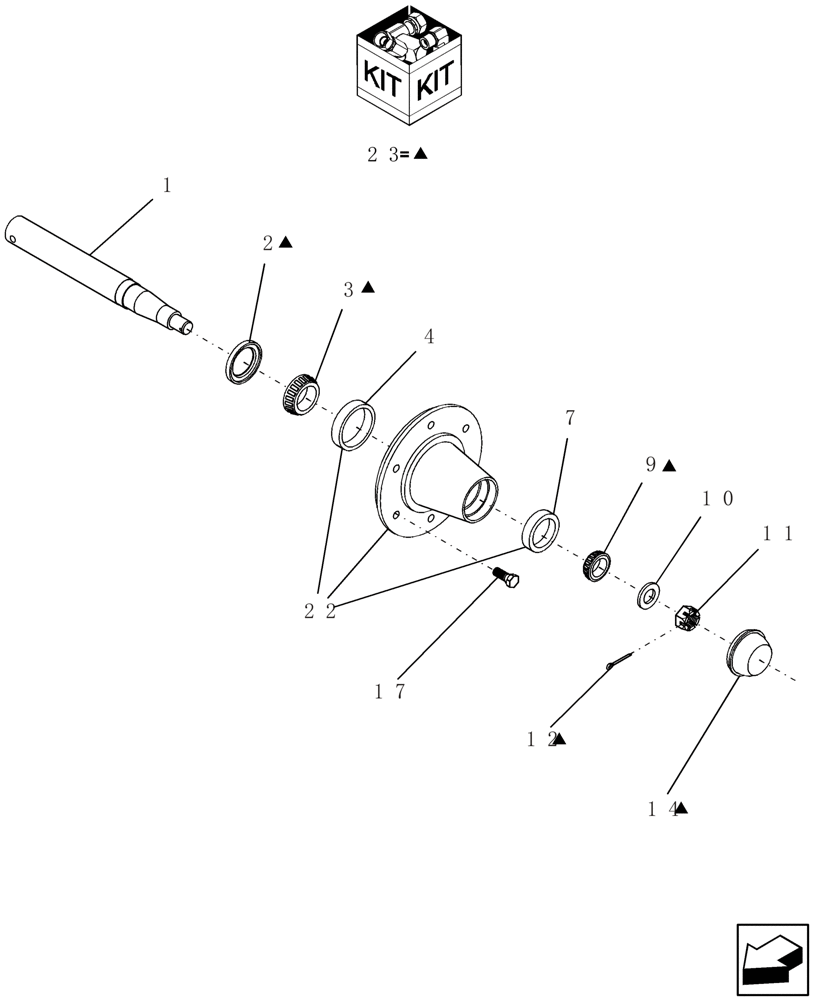

Запчасти Case IH ADX3360 (D.13.B[16]) - FRONT HUB/SPINDLE ASSEMBLY - 6 BOLT D - Travel

1

8297

SPINDLE

2" x 16" - s614 hub

1шт.

Includes ref 10 and 11

1шт.

2

491715R91

OIL SEAL

oil SE16

1шт.

3

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

#LM603049

1шт.

4

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

#LM603049

1шт.

7

86516467

BEARING CUP,65.08mm OD x 13.97mm W

#LM48510

1шт.

9

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

#LM48548

1шт.

10

5871

WASHER

1 1/64" id x 2" x 5/16"

1шт.

11

86020752

SLOTTED NUT

1"-14, G5

1шт.

12

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

14

51200086

HUB CAP

dc15 h614

1шт.

17

G49036

WHEEL BOLT

wheel 9/16"-18 x 1 1/4", G5, WB12

1шт.

22

87505496

HUB

H614 with cups & bolts

1шт.

Includes ref 4, 7 and six 17

1шт.

23

412771A1

WHEEL BEARING KIT

hub completion - h614

1шт.

Includes ref 2, 3, 9, 12 and 14

1шт.
