Запчасти Case IH ADX3360 (D.13.B[05]) - LEFT REAR AXLES (ASN CBJ0005319) D - Travel

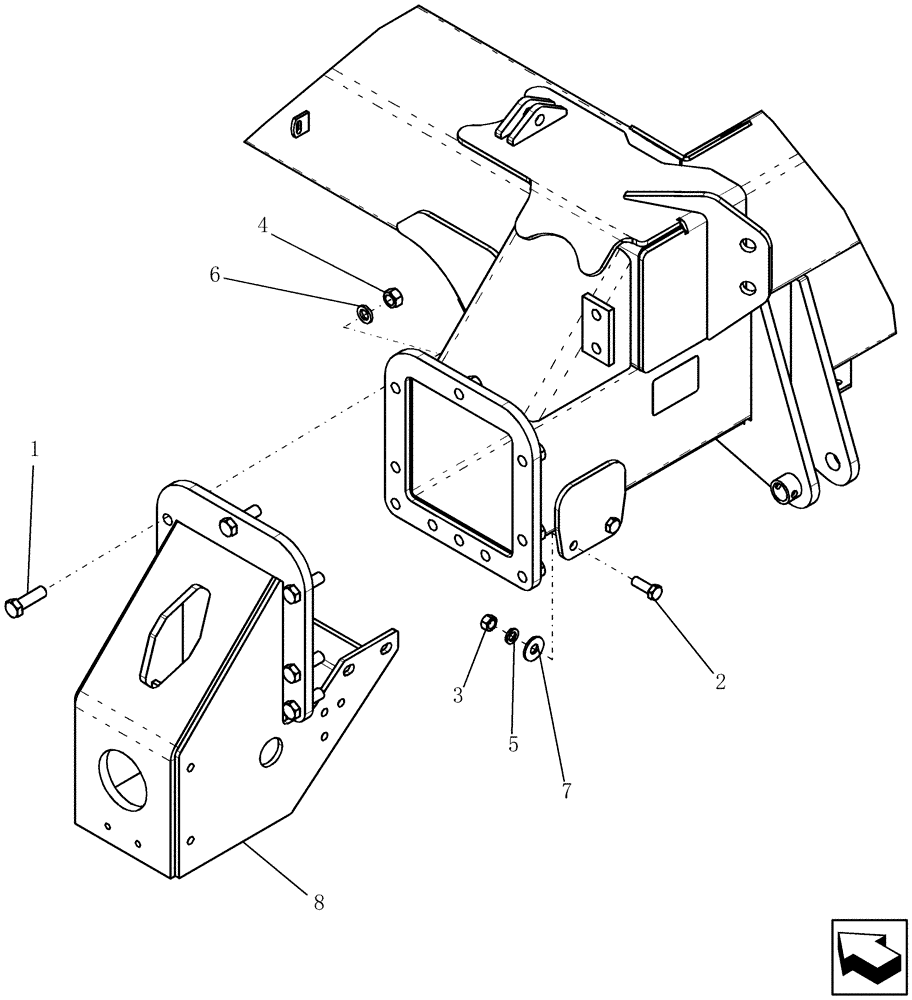

Схема запчастей Case IH ADX3360 - (D.13.B[05]) - LEFT REAR AXLES (ASN CBJ0005319) D - Travel
5
4
8
3
2
1
6
7

Артикул

Название

Примечание

Количество

1

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

10шт.

2

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

3

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

4

280954

NUT,3/4"-10, G5

10шт.

5

12034871

WASHER

5/8"

4шт.

6

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

10шт.

7

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

8

87426807

AXLE HOUSING

32" wheel 4.5"

1шт.

Выбрано товаров: 8
