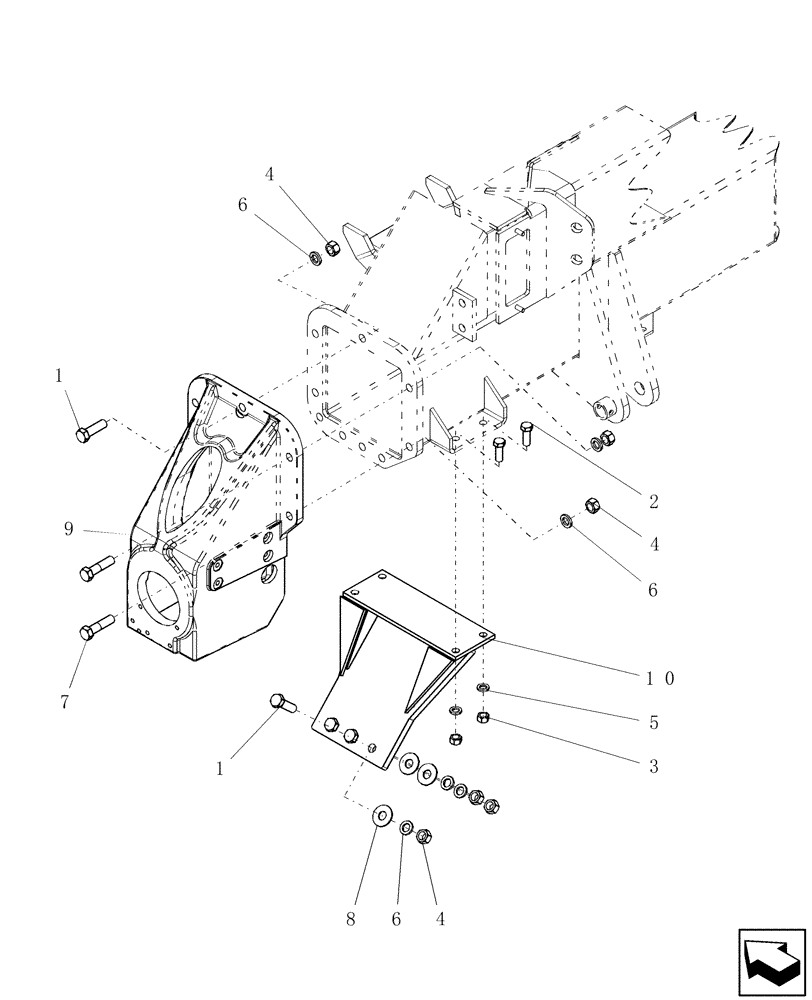

Запчасти Case IH ADX3360 (D.13.B[04]) - LEFT REAR AXLES (BSN CBJ0005318) D - Travel

1

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

10шт.

2

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

3

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

4

280954

NUT,3/4"-10, G5

12шт.

5

12034871

WASHER

5/8"

4шт.

6

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

12шт.

7

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

8

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

3шт.

9

9777\C

HOUSING

wheel LH

1шт.

10

GL-388

BRACKET

Axle Housing LH for 32" & 38" Wheels

1шт.
