Запчасти Case IH ADX3360 (D.13.B[02]) - RIGHT REAR AXLES (BSN CBJ0005318) D - Travel

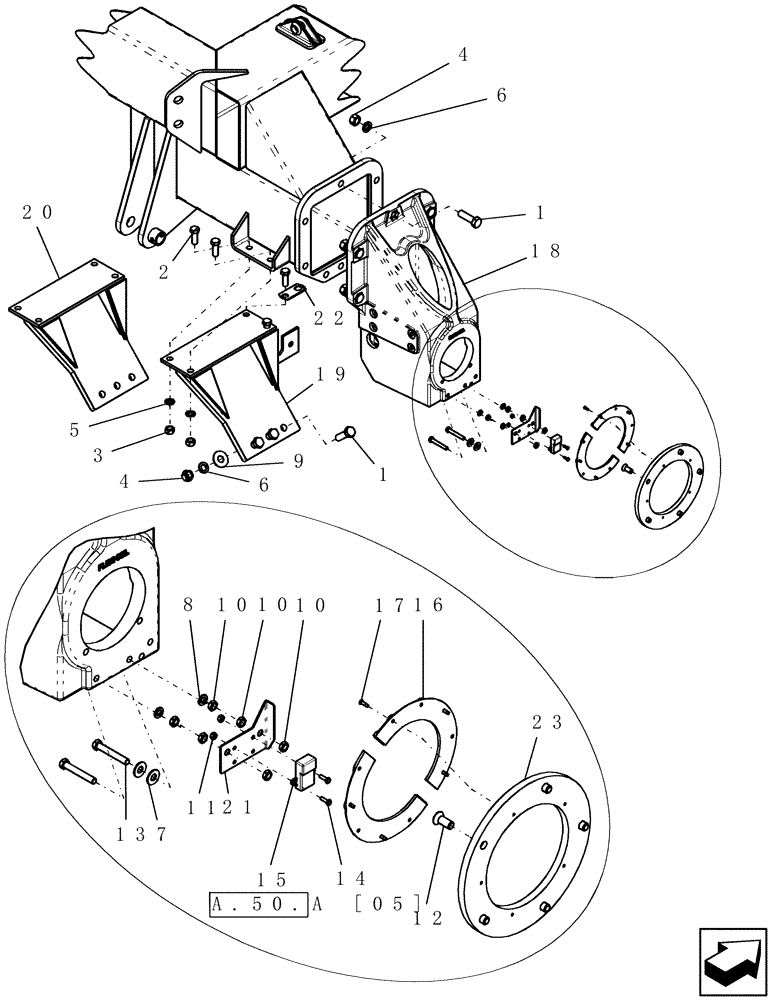

Схема запчастей Case IH ADX3360 - (D.13.B[02]) - RIGHT REAR AXLES (BSN CBJ0005318) D - Travel
2
22
5
10
12
7
10
1
21
16
4
15
11
17
6
19
20
1
18
3
13
8
10
23
6
9
4
14

Артикул

Название

Примечание

Количество

1

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

12шт.

2

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

3

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

4

280954

NUT,3/4"-10, G5

12шт.

5

12034871

WASHER

5/8"

4шт.

6

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

12шт.

7

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

8

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

9

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

3шт.

10

87016560

JAM NUT,Jam, 3/8"-16, G5

6шт.

11

9148

LOCK NUT

#10-32, stainless steel

2шт.

12

51200126

SCREW

cap 1/2"-20 x 1 1/4" G8

5шт.

13

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

2шт.

14

9809

SCREW,Hex, #10 - 32 x 5/8", SST

mch #10-32 x 5/8" hh ss

2шт.

15

13919

SENSOR

shaft

1шт.

Refer to Sensors page for details

1шт.

16

21681

RING

sensor half of 60 tooth

2шт.

17

22007

SELF-TAP SCREW

#8 x 5/8" fh b pi

5шт.

18

9776\C

HOUSING

wheel RH

1шт.

19

GL-382

BRACKET

Axle Housing RH for 32' & 38" Wheels

1шт.

20

GL-388

BRACKET

Axle Housing LH for 32" & 38" Wheels

1шт.

21

GL-734

SENSOR

scraper

1шт.

22

GL-954

CABLE RETAINER

harness

1шт.

23

GM-325

RING

backup

1шт.

Выбрано товаров: 24
