Запчасти Case IH ADX3360 (A.50.A[56]) - TASK CONTROLLER OMNISTAR CABLE A - Distribution Systems

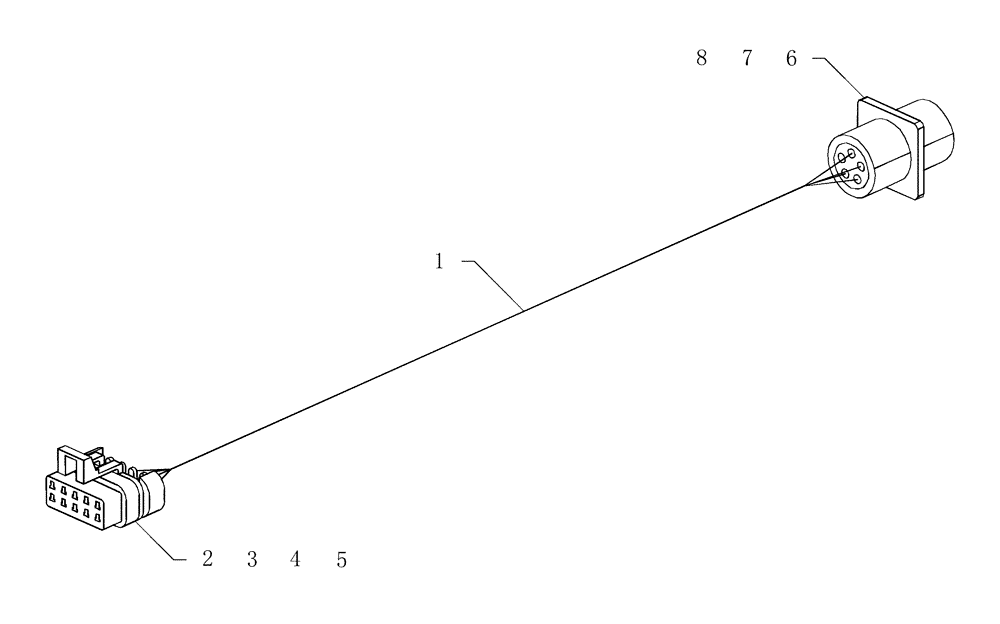

Схема запчастей Case IH ADX3360 - (A.50.A[56]) - TASK CONTROLLER OMNISTAR CABLE A - Distribution Systems
4
7
3
8
6
5
1
2

Артикул

Название

Примечание

Количество

1

14972

HARNESS

gps omnistar 2.0 m

1шт.

2

51200033

ELEC CONNECTOR,Female, 10 Pin

plastic 10c plug

1шт.

3

14967

STOP LOCK

10c plug connector

1шт.

4

FLX14966

CONTACT

socket 18-20awg

4шт.

5

14974

PIPE FITTING

Cavity, Dark Red

6шт.

6

225222C1

ELEC CONNECTOR,Male, 5 Pin

plastic 5c receptacle fl

1шт.

7

225348C1

ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2

pin 16-18awg

4шт.

8

84068583

PLUG,12 - 16 Ga, White

connector cavity white plastic

1шт.

Выбрано товаров: 8
