(A.50.A[55]) - TASK CONTROLLER SATLOC CABLE

Запчасти Case IH ADX3360 (A.50.A[55]) - TASK CONTROLLER SATLOC CABLE A - Distribution Systems

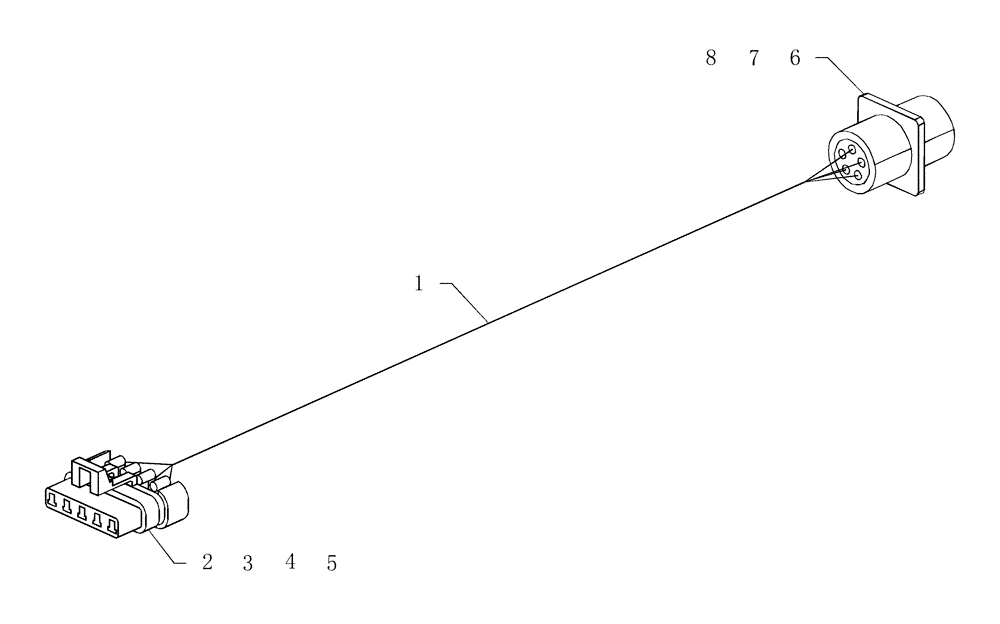

Схема запчастей Case IH ADX3360 - (A.50.A[55]) - TASK CONTROLLER SATLOC CABLE A - Distribution Systems
6
5
4
7
2
3
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

14973

HARNESS

gps satloc 2.0 m

1шт.

2

51200035

ELEC CONNECTOR,Female , 5 Pin

Plastic 5c Plug

1шт.

3

51200037

STOP LOCK

5c plug connector

1шт.

4

51200036

CONTACT HOUSING,Female, Pole

socket 18-20awg

3шт.

5

225127C1

PLUG

cavity, green rubber

2шт.

6

225222C1

ELEC CONNECTOR,Male, 5 Pin

plastic 5c receptacle fl

1шт.

7

225348C1

ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2

pin 16-18awg

3шт.

8

84068583

PLUG,12 - 16 Ga, White

connector cavity white plastic

2шт.
