(A.50.A[54]) - TASK CONTROLLER GPS CABLE (SOCKETS)

Запчасти Case IH ADX3360 (A.50.A[54]) - TASK CONTROLLER GPS CABLE (SOCKETS) A - Distribution Systems

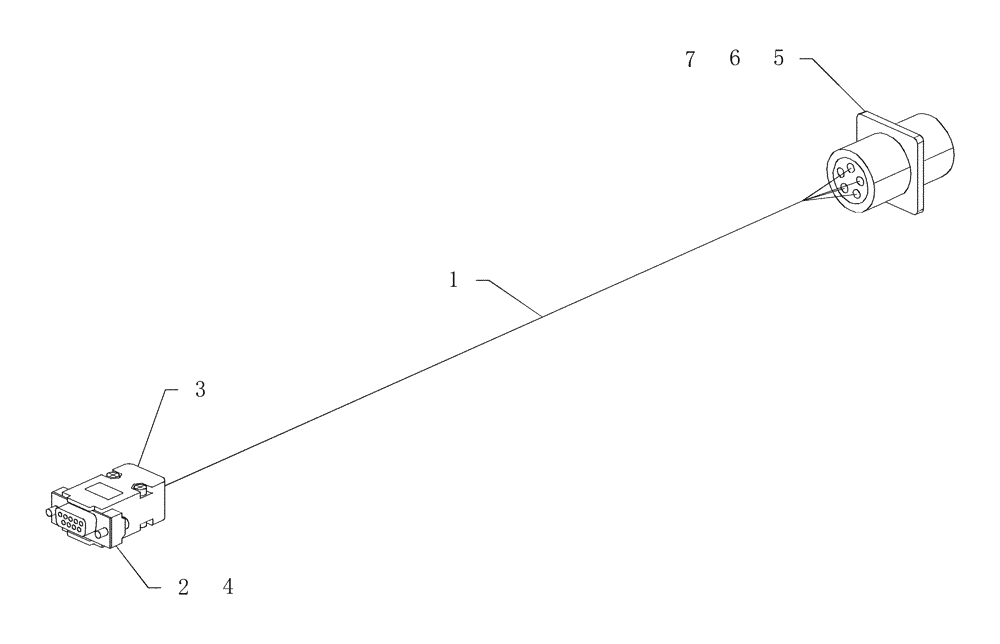

Схема запчастей Case IH ADX3360 - (A.50.A[54]) - TASK CONTROLLER GPS CABLE (SOCKETS) A - Distribution Systems
4
2
3
5
1
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

14964

HARNESS

gps industry standard 2.0 m

1шт.

2

425444A1

ELEC CONNECTOR

cab metal d-type 9-cond

1шт.

3

425445A1

ELEC CONNECTOR

cable clamp d-type 1

1шт.

4

425443A1

CONTACT HOUSING

20-24awg

2шт.

5

225222C1

ELEC CONNECTOR,Male, 5 Pin

plastic 5c receptacle fl

1шт.

6

225348C1

ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2

pin 16-18awg

2шт.

7

84068583

PLUG,12 - 16 Ga, White

connector cavity white plastic

3шт.
