Запчасти Case IH ADX3360 (A.50.A[09]) - VARIABLE DRIVE SWITCHES A - Distribution Systems

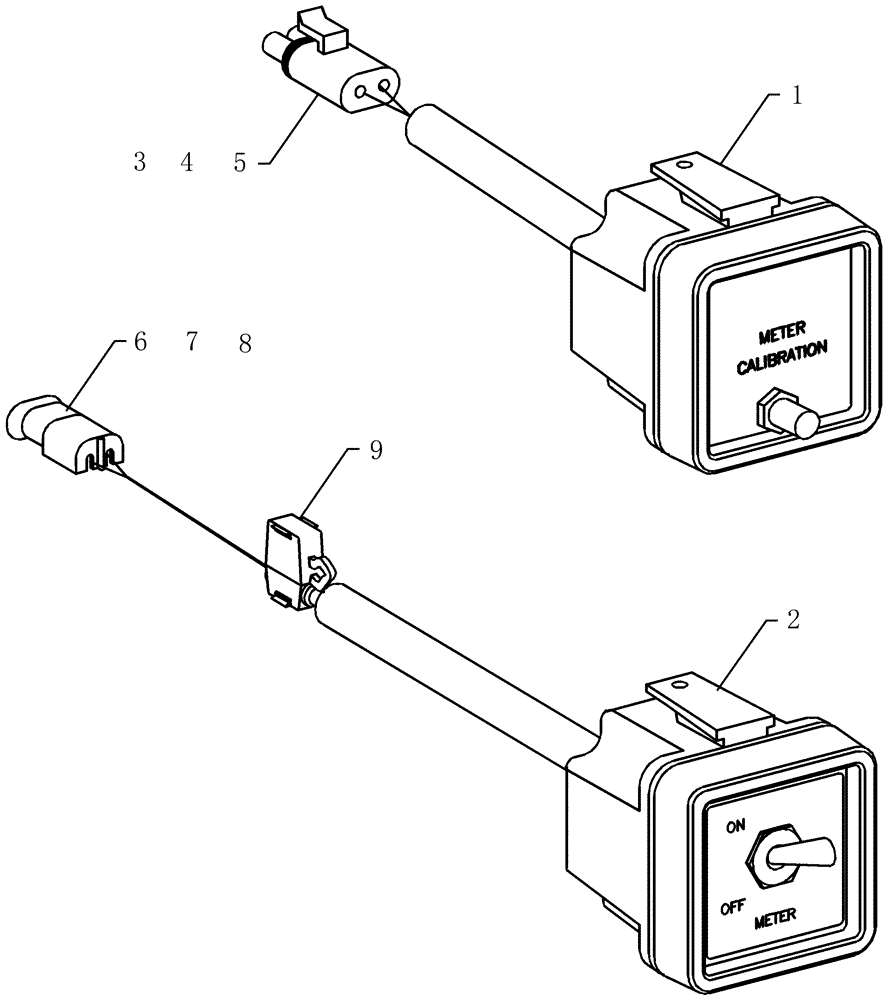

Схема запчастей Case IH ADX3360 - (A.50.A[09]) - VARIABLE DRIVE SWITCHES A - Distribution Systems
1
7
5
2
8
6
4
9
3

Артикул

Название

Примечание

Количество

1

84307649

SWITCH

Calibration

1шт.

2

13924

SWITCH

meter on/off

1шт.

1a

87508155

DECAL

Front Panel Calibration Switch

1шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

1шт.

4

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

socket 18-20awg

2шт.

5

441656A1

ELEC CONNECTOR

seal ppl 2.15-1.6mm

2шт.

6

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

1шт.

7

225119C1

TERMINAL

14-16awg

2шт.

8

225125C1

SEAL

Connector Grey 3.49 - 2.81 mm

2шт.

9

84090658

FUSE,Lt Blue, 15 Amp

15 Amp, Type A

1шт.

Выбрано товаров: 10
