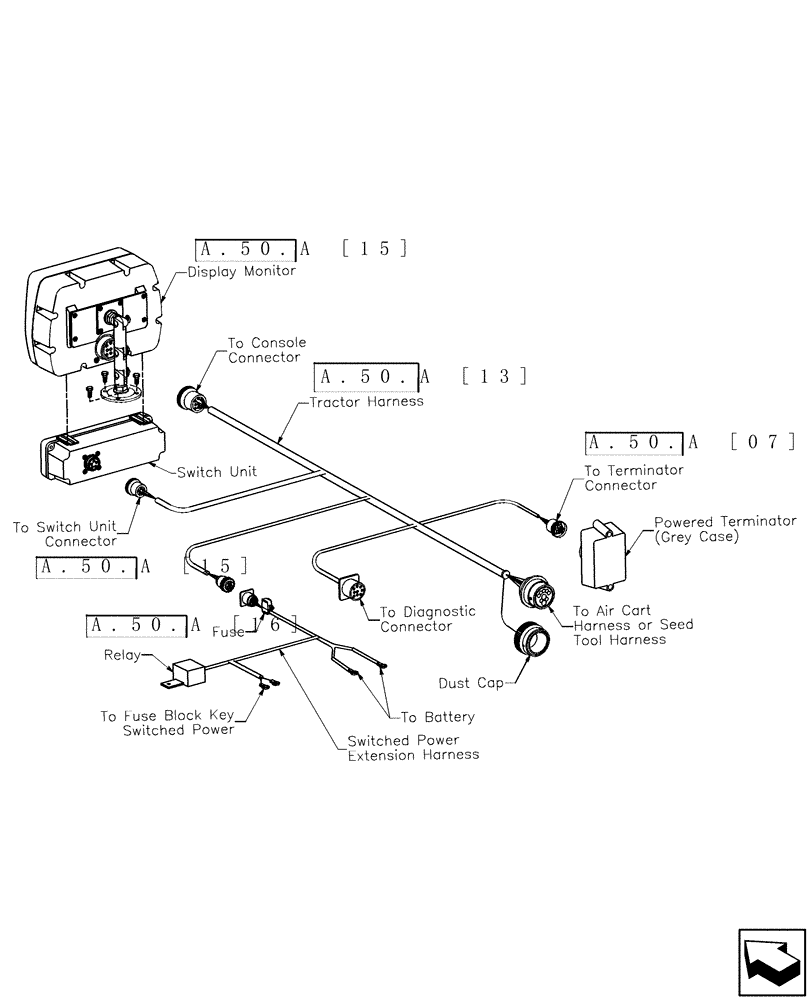

(A.50[02]) - LAYOUT - DISPLAY MONITOR, SWITCH UNIT AND TRACTOR HARNESS

Запчасти Case IH ADX3360 (A.50[02]) - LAYOUT - DISPLAY MONITOR, SWITCH UNIT AND TRACTOR HARNESS A - Distribution Systems

Схема запчастей Case IH ADX3360 - (A.50[02]) - LAYOUT - DISPLAY MONITOR, SWITCH UNIT AND TRACTOR HARNESS A - Distribution Systems
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

13908V2

HARNESS

tractor 7.6 m

1шт.

0

13928V2

TERMINAL

powered (grey) electronic control unit

1шт.

0

87504891

ECU

4 line monitor

1шт.

0

87604748R

REMAN ELECT CONTROL

4 line monitor

1шт.

0

87604748C

CORE-ELECTRONIC CONT

Return Number

1шт.

0

87506427

ECU

seeder prime

1шт.

0

15522R

SWITCH

rebuilt unit seeder prime

1шт.

100

15470

HARNESS

tractor FlexControl - afs

1шт.

Not Shown

1шт.
