Запчасти Case IH ADX3360 (L.10.F[26]) - INTERMEDIATE MANIFOLD L - Field Processing

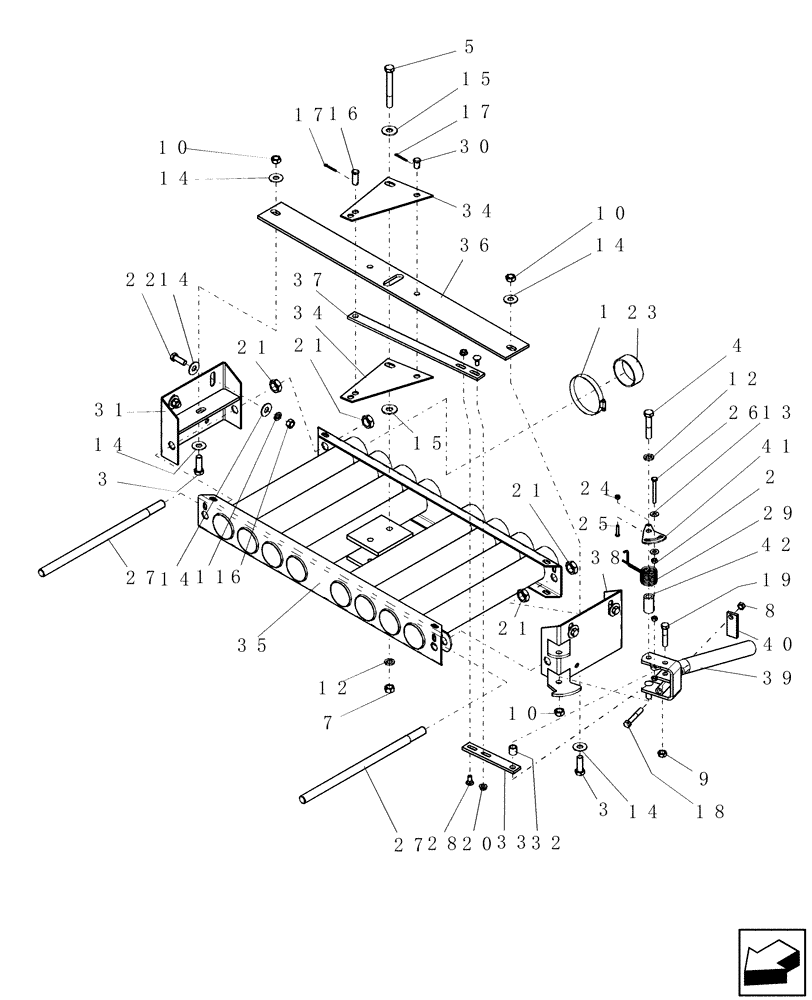

Схема запчастей Case IH ADX3360 - (L.10.F[26]) - INTERMEDIATE MANIFOLD L - Field Processing
40
34
27
3
21
28
8
37
14
22
9
15
7
30
10
1
17
38
39
5
19
32
11
21
14
27
15
14
23
26
25
14
13
2
33
10
31
35
14
12
17
24
12
10
4
29
41
16
18
3
20
36
21
34
21
14
6
42

Артикул

Название

Примечание

Количество

1

214-1444

HOSE CLAMP,58.6mm - 82.5mm

1шт.

2

7770

NUT,Hex, 1/4 - 20, Cl 5

3шт.

3

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

4

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

5

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

6

280717

NUT,7/16"-14, G5

4шт.

7

280431

NUT,1/2"-13, G5

1шт.

8

88902

NUT,3/8"-16

1шт.

9

280980

NUT,7/16"-14, GC

1шт.

10

86992215

LOCK NUT,1/2"-13, GC

3шт.

11

81547

LOCK WASHER,7/16"

4шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

13

95-21031

WASHER,1/4"

2шт.

14

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

12шт.

15

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

16

1841

CLEVIS PIN

1/2" x 1 1/4"

1шт.

17

80755

COTTER PIN,1/8" OD x 1" L

2шт.

18

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

19

280117

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

20

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

21

86632557

JAM NUT,Jam, 3/4"-10, G5

4шт.

22

9627887

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

4шт.

23

4731

CAP

vinyl 2 1/2" id x 1" long

1шт.

24

9448

NUT

#10-24 stainless steel

1шт.

25

425092A1

SCREW,Pan Hd, #10-24 x 1", Sq Slot, Stainless

1шт.

26

9909

BOLT

1/4" x 2 1/2" GR5 all thread

1шт.

27

9970

STUD

3/4"-10 x 15 1/2"

2шт.

28

51200045

CARRIAGE BOLT

5/16"-18 x 3/4", G5

2шт.

29

22593

TORSION SPRING

Left hand, .115'' wire x 1.465'' OD, Stainless steel

1шт.

30

GH-145

CLEVIS PIN

1/2" x 11/16"

1шт.

31

GH-168

BRACKET

intermediate manifold mount RH

1шт.

32

GH-250

SPACER

actuator arm

1шт.

33

GH-251

ARM

actuator short

1шт.

34

GH-253

PLATE

actuator intermediate manifold

2шт.

35

GL-447

MANIFOLD

intermediate

1шт.

36

GL-449

PLATE

crossmember, intermediate manifold

1шт.

37

GL-450

POWER ARM

long

1шт.

38

GM-324

BRACKET

mount, intermediate manifold

1шт.

39

GM-326

HANDLE

intermediate manifold

1шт.

40

GM-327

LATCH

intermediate manifold handle

1шт.

41

GM-328

PIVOT

arm assembly

1шт.

42

GM-330

BUSHING

int manifold handle

1шт.

Выбрано товаров: 42
