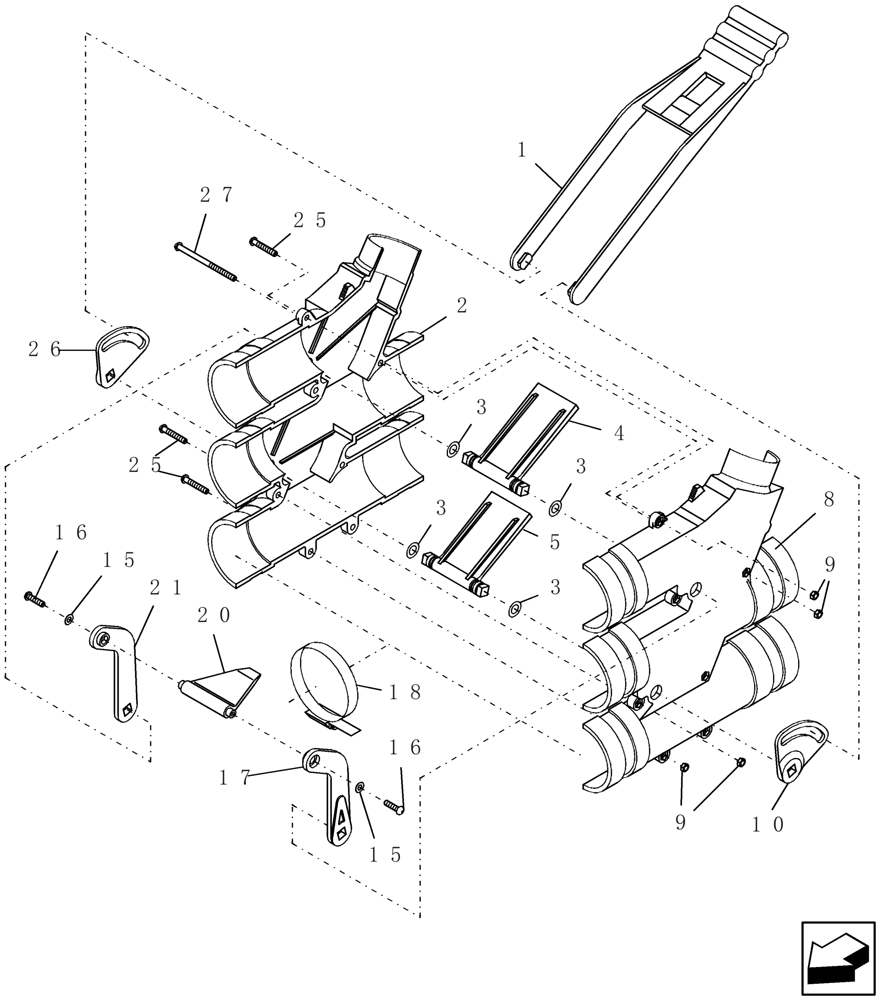

Запчасти Case IH ADX3360 (L.10.E[08]) - THREE OUTLET VALVE L - Field Processing

0

GL-454A

VALVE

assembly, triple shoot

1шт.

1

9389

HANDLE

lock - triple shoot valve

1шт.

2

9386

BALANCE VALVE

manifold side single/double/triple RH

1шт.

3

49861

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

4шт.

4

9438

FLAP

top - triple shoot valve

1шт.

5

9391

FLAP

bottom sgl/dbl/trpl valve

1шт.

8

9385

BALANCE VALVE

manifold side single/double/triple LH

1шт.

9

425091A1

NUT,#10-24 Stainless

7шт.

10

9387

CONTROL SLIDE

triple shoot lock LH

1шт.

15

9527

WASHER

#10 ss

2шт.

16

9528

HEX SOC SCREW,Sl Rnd Hd, #10 - 32 x 0.50", SST

machine #10-32 x 1/2" rh skt-slt ss

2шт.

17

7298

HANDLE

double shoot valve LH

1шт.

18

214-1444

HOSE CLAMP,58.6mm - 82.5mm

5шт.

20

9390

LOCK

top - triple shoot valve

1шт.

21

7299

HANDLE

double shoot valve RH

1шт.

25

9447

SCREW,Pan Hd, #10 - 24 x 0.75", Sl Sq Drive

mch #10-24 x 3/4" ph sq-slt ss

5шт.

26

9388

CONTROL SLIDE

triple shoot lock RH

1шт.

27

9529

SCREW,#10 - 24 x 2.25"

mch #10-24 x 2 1/4" rh sq-slt ss

2шт.

100

GL-700.45

DECAL

triple shoot valve b

1шт.

Not Shown

1шт.
