Запчасти Case IH ADX3360 (L.10.E[05]) - AIR DAMPER DRIVE ASSEMBLY L - Field Processing

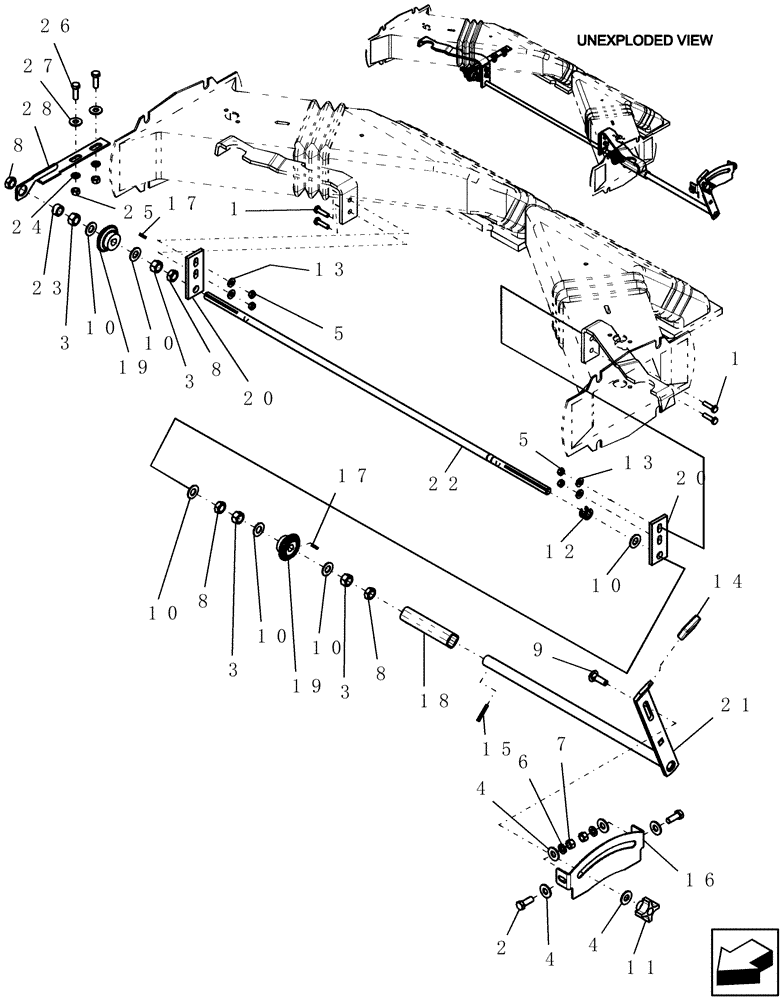

Схема запчастей Case IH ADX3360 - (L.10.E[05]) - AIR DAMPER DRIVE ASSEMBLY L - Field Processing
10
5
24
15
6
12
11
8
1
1
8
22
5
13
14
10
23
4
8
8
17
19
9
10
7
10
3
3
20
25
27
19
2
3
3
21
28
20
13
18
4
4
16
10
26
10
17

Артикул

Название

Примечание

Количество

1

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

280431

NUT,1/2"-13, G5

4шт.

4

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

5

280129

NUT,1/4"-20

4шт.

6

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

7

9628503

NUT,3/8"-16, G5

2шт.

8

86632558

JAM NUT,Jam, 1/2"-13, G5

4шт.

9

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

1шт.

10

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

6шт.

11

6909

KNOB

plastic 4-prong 3/8" thru hole brass insert

1шт.

12

6882

SNAP RING

external .392" ID for .5" shaft

2шт.

13

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

14

51200046

CAP

plastic rct 1/4" x 1 1/4" x 2" black

1шт.

15

87020816

LOCK PIN,4.76mm OD x 31.75mm L

1шт.

16

GL-136

ACTUATING PLATE

air control

1шт.

17

GL-250

KEY

miter gear drive

2шт.

18

GL-718

COUPLING

damper shaft

1шт.

19

GL-724

GEAR

miter, air system

2шт.

20

GL-856

DRIVE SHAFT

plate retainer, damper

2шт.

21

GM-287

HANDLE

air damper control

1шт.

22

GM-311

SHAFT

damper drive

1шт.

23

GM-421

BUSHING

air damper shaft

1шт.

24

80681

LOCK WASHER,5/16"

2шт.

25

9635082

NUT,5/16" - 18, Gr 5

2шт.

26

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

27

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

28

GM-422

BRACKET

shaft retainer

1шт.

Выбрано товаров: 28
