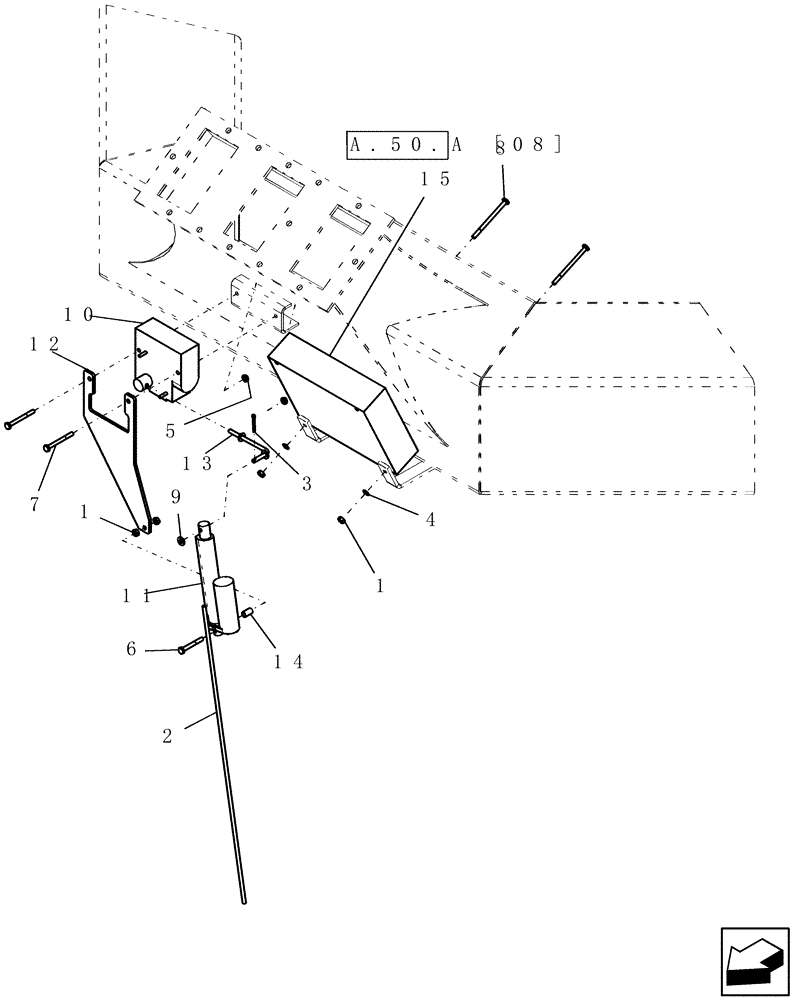

Запчасти Case IH ADX3360 (L.10.D[05]) - FAN SPEED CONTROL OPTION - FAN SPEED CONTROL L - Field Processing

1

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

2

14555

CABLE

assembly, air control

1шт.

3

80755

COTTER PIN,1/8" OD x 1" L

1шт.

4

80682

LOCK WASHER,1/4"

2шт.

5

280129

NUT,1/4"-20

2шт.

6

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

7

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

8

280492

BOLT,Hex, 1/4" - 20 x 3 1/2", Gr 5

2шт.

9

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

10

425030A1

CONTROL VALVE

flow, 3 port

1шт.

11

51200131

ACTUATOR

electric linear 75 lb x 4"

1шт.

12

GL-502

PLATE

mounting flow control actuator

1шт.

13

GL-690

ARM

actuator, air flow control

1шт.

14

GL-693

SPACER

fan control actuator

1шт.

15

87504884

ECU

air control

1шт.

Refer to Remote Modules page for details

1шт.
