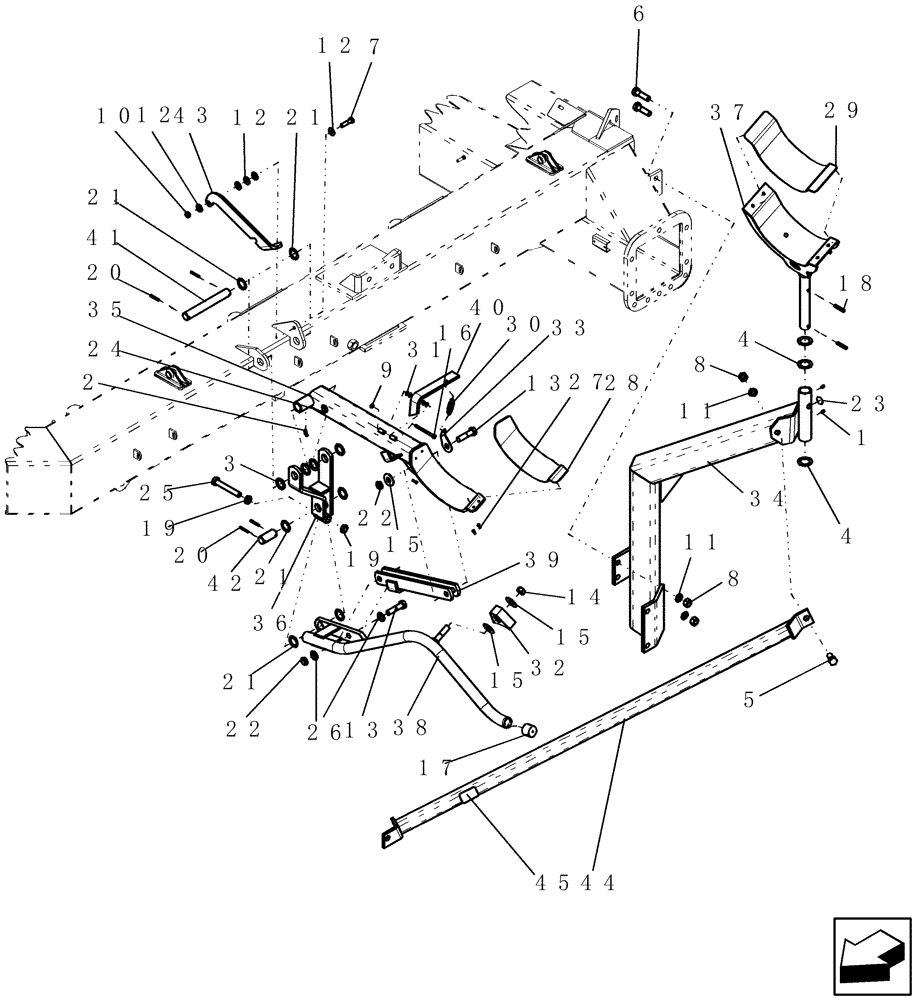

Запчасти Case IH ADX3360 (L.10.B[12]) - AUGER FRONT/REAR SUPPORT ARMS L - Field Processing

1

87414

LUBE NIPPLE,1/4" - 28

2шт.

2

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.

3

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

4шт.

4

1313

WASHER,1-1/2" ID x 2-1/4" OD x 10 Ga Thk

1 1/2" id 2 1/4" 10ga

3шт.

5

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

1шт.

6

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

2шт.

7

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

8

280954

NUT,3/4"-10, G5

3шт.

9

281010

LOCK NUT,7/8"-14, GC

1шт.

10

86992215

LOCK NUT,1/2"-13, GC

1шт.

11

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

3шт.

12

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

5шт.

13

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

3шт.

14

280375

NUT,3/4"-10, GC

1шт.

15

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

3шт.

16

88964

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

17

3419

CAP

vinyl 1 5/8" x 1 1/2"

1шт.

18

87577

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

2шт.

19

86632557

JAM NUT,Jam, 3/4"-10, G5

2шт.

20

86624087

PIN,1/4" x 1 3/4", Coiled

4шт.

21

87325445

WASHER,1.25" ID x 1.88" OD x 0.07" Thk

1 1/4" id 1 7/8" 14ga

6шт.

22

280375

NUT,3/4"-10, GC

2шт.

23

6567

DECAL

grease 200 hours

1шт.

24

6630

DECAL

grease 100 hours

1шт.

25

6717

BOLT,Hex, 3/4" - 10 x 5", Gr 5, Full Thd

1шт.

26

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

27

8670

RIVET,Pop, 3/16" OD x 3/4" L

pop 3/16" x 3/4"

8шт.

28

9478

WEAR PLATE

lower auger support

1шт.

29

51200862

WEAR STRIP

auger saddle - rear

1шт.

30

87506268

COIL SPRING

1/16" wire x 3/4" od x 2 1/2" long

1шт.

31

21574

WASHER

31/64" id 19/32" 1/16"

1шт.

32

CA-218

CLAMP

auger tube

1шт.

33

GL-253

BRACKET

spring

1шт.

34

GL-490

SUPPORT

rear

1шт.

35

GL-492

LATCH

front, bottom saddle

1шт.

36

GL-494

ARM

lock front auger

1шт.

37

GL-656A

SADDLE

Auger, Complete with Poly Liner and Rivets

1шт.

38

GL-750

CLAMP

auger bottom

1шт.

39

GL-751

LINK

auger clamp front auger saddle

1шт.

40

GL-756

CLAMP

lock auger front saddle

1шт.

41

GL-791

HEADLESS PIN

lower auger support - long

1шт.

42

GL-792

HEADLESS PIN

lower auger support - short

1шт.

43

GL-796

LOCK

front, auger support

1шт.

44

GL-820

BRACKET

Auger Support Rear

1шт.

45

GL-700.04

DECAL

auger brake, Years: -01-DEC-04

1шт.
