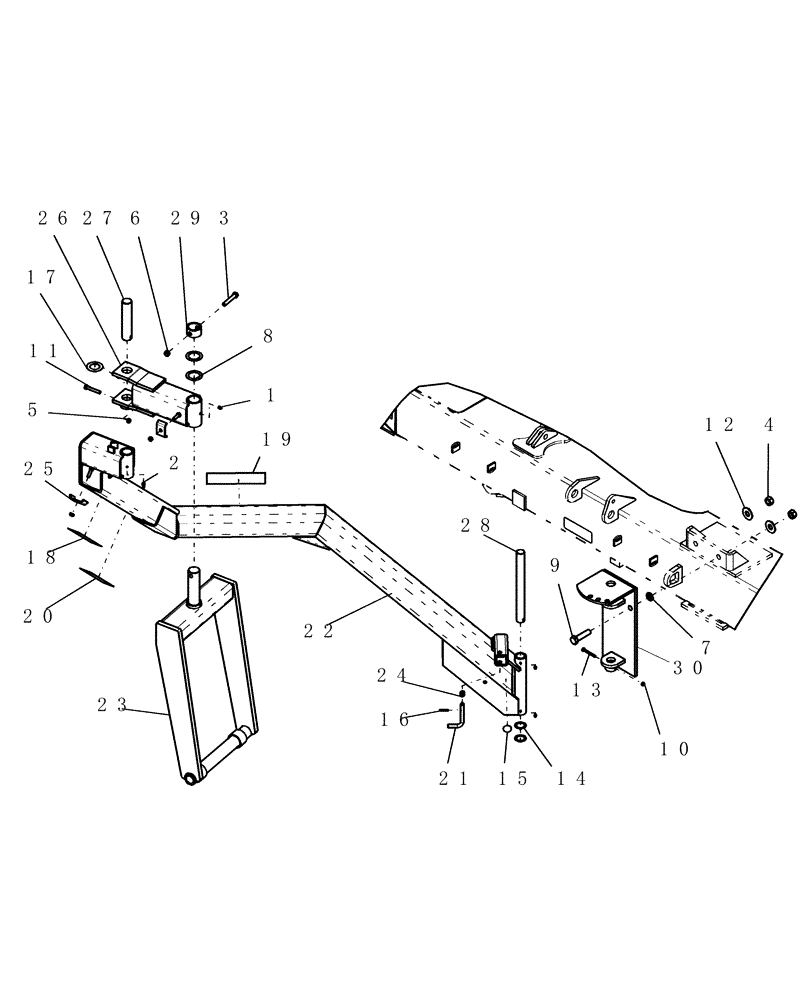

Запчасти Case IH ADX3360 (L.10.B[11]) - AUGER MAIN SUPPORT ARM (ASN CBJ0019301) L - Field Processing

1

87414

LUBE NIPPLE,1/4" - 28

3шт.

2

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.

3

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

4

280954

NUT,3/4"-10, G5

2шт.

5

88902

NUT,3/8"-16

3шт.

6

86992215

LOCK NUT,1/2"-13, GC

1шт.

7

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

8

87325446

WASHER,1.75" ID x 2.5" OD x 0.07" Thk

1 3/4" id 2 1/2" x 14 ga

2шт.

9

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

10

280129

NUT,1/4"-20

1шт.

11

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

12

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

13

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

1шт.

14

87304341

WASHER,1.27" ID x 1.75" OD x 0.03" Thk

2шт.

15

6630

DECAL

grease 100 hours

1шт.

16

87020816

LOCK PIN,4.76mm OD x 31.75mm L

1шт.

17

21303

WASHER

1 1/2" id 2 1/2" 16ga

1шт.

18

22902

DECAL

retroreflective red 2" x 9"

1шт.

19

22903

DECAL

retroreflective amber 2" x 9"

1шт.

20

51200094

DECAL

fluorescent red orange

1шт.

21

86989314

PIN,12.7mm OD

spring auger arm

1шт.

22

87501826

ARM

Auger, with lock

1шт.

23

87502417

SUPPORT

support

1шт.

24

87505489

COMPRESSION SPRING

23/32" x 2"

1шт.

25

CC-105

HOSE CLAMP

for 2 hoses

2шт.

26

GL-660

ARM

auger short

1шт.

27

GL-665

HEADLESS PIN

auger arm - short

1шт.

28

GL-666

PIVOT PIN

main auger arm

1шт.

29

GL-794

RETAINER

auger scissor

1шт.

30

87502573

BRACKET

pivot mount auger arm

1шт.
