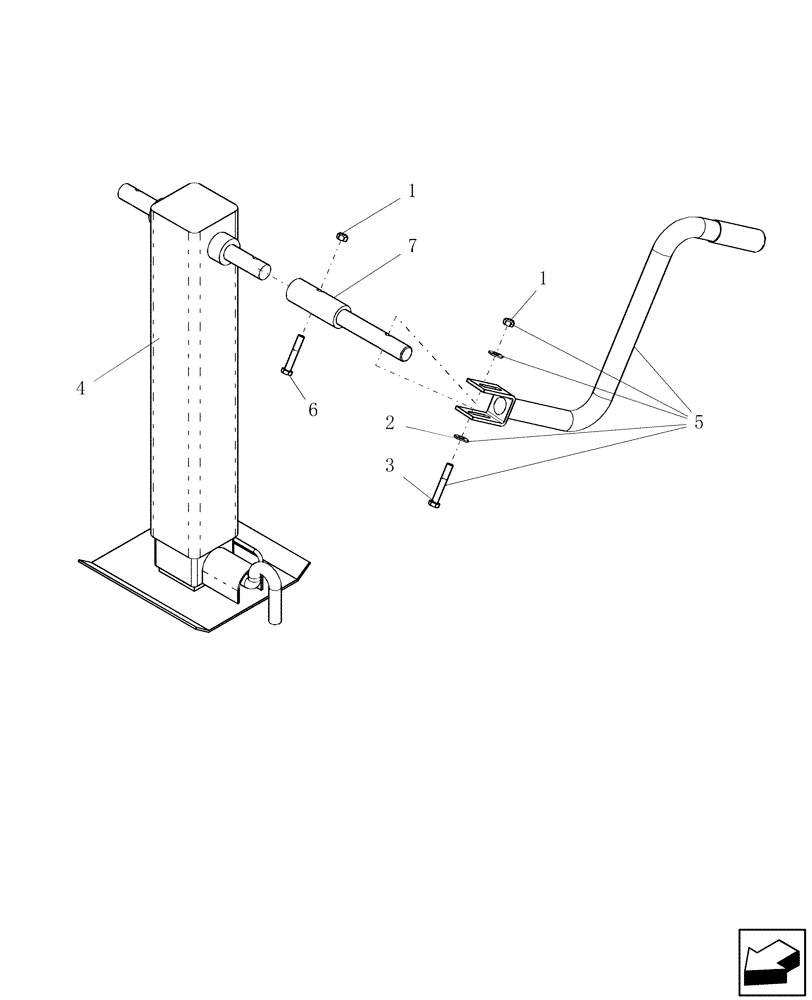

Запчасти Case IH ADX3360 (F.20.C[01]) - 10,000 LB JACK ASSEMBLY F - Frame Positioning

0

21803

JACK

assembly - 10,000lb x 26"

1шт.

1

88902

NUT,3/8"-16

2шт.

2

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

3

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

4

22031

JACK

10,000lb x 26" - without crank

1шт.

5

22032

CRANK

assy for jack 10000 lb x 26

1шт.

Includes 231-4146, two 495-21038 and 413-640

1шт.

6

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

7

GL-637

EXTENSION

jack handle

1шт.
