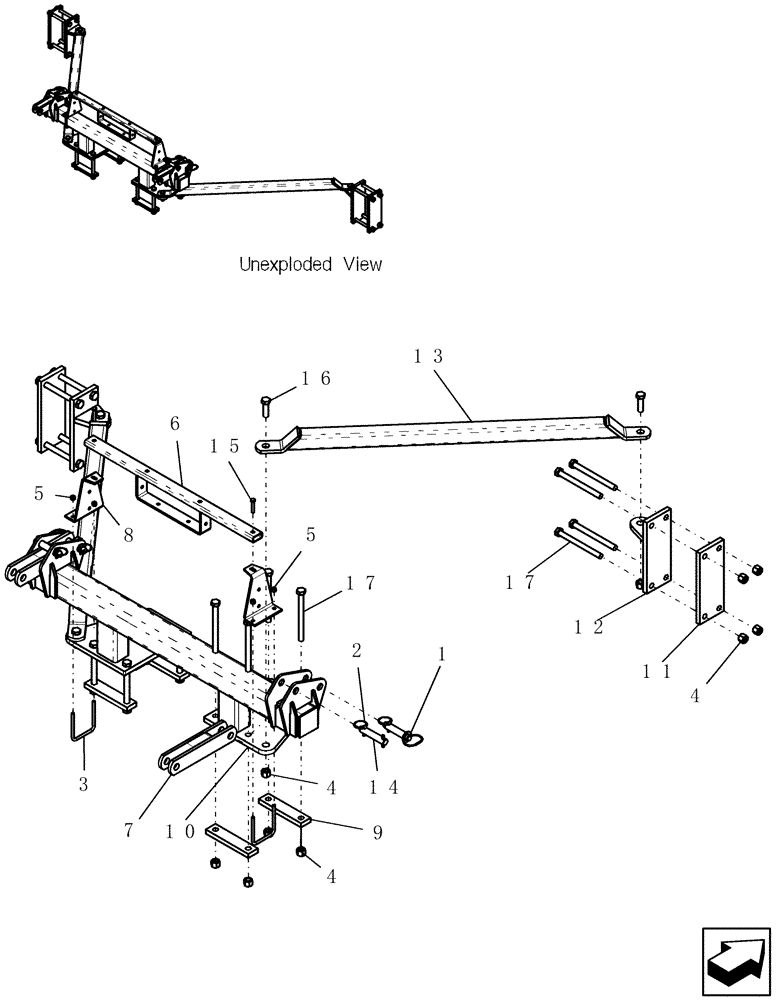

Запчасти Case IH ADX3360 (F.10.D[21]) - SDX INTERMEDIATE HITCH F - Frame Positioning

1

412769A1

HITCH PIN

1" x 3 1/2" usable

2шт.

Includes 6425

1шт.

2

6425

LINCH PIN

7/16" x 1 3/8"

2шт.

3

1030501

U-BOLT

us 3/8"-16 x 4" x 5" zp 1" of thread

2шт.

4

86754

NUT,3/4"-10, GB

20шт.

5

231-1446

NUT,3/8" - 16, Gr 5

6шт.

6

351435A1

TUBE

coupler

1шт.

7

351439A1

PIVOT,Uses 2 - 1" pins

link

2шт.

For TBH Cart and Disc Drills

1шт.

7

GE-197

LINKAGE,Uses 1 each of 1" and 3/4" pins

mount, pivot link

2шт.

For TBH Cart and Hoe Drills

1шт.

8

351634A1

BRACKET

mounting

2шт.

9

351638A1

BAR

bolting

4шт.

10

351645A1

HITCH

1шт.

11

351647A1

BAR

bolting

2шт.

12

351650A1

WELDABLE LUG

hitch

2шт.

13

351654A1

BRACKET

wing

2шт.

14

351935A1

PIN

draw, 1" x 3 1/2"

2шт.

Includes 6425

1шт.

15

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

16

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

4шт.

17

426-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 8

16шт.
