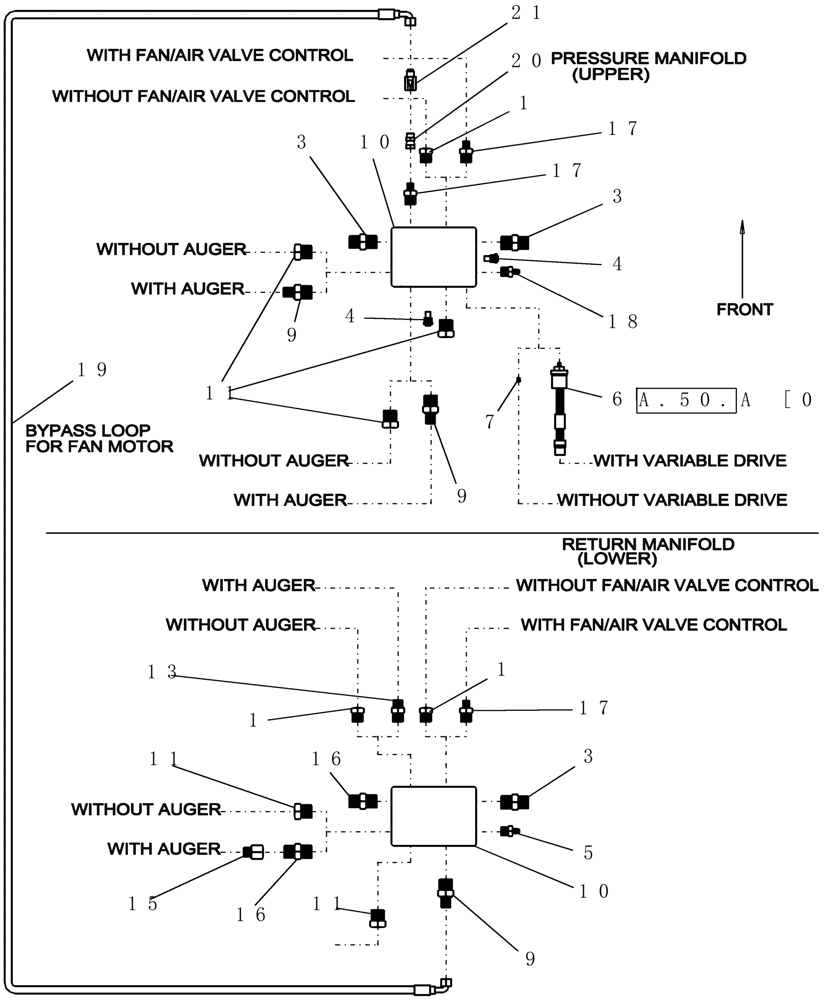

Запчасти Case IH ADX3360 (A.10.A[06]) - HYDRAULICS - MANIFOLDS (1ST AND 2ND SERIAL NO. RANGE) A - Distribution Systems

1

163410

PLUG,1-1/16" - 12 ORB

3шт.

3

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

3шт.

4

9754

CARTRIDGE

check valve

2шт.

5

9402

FITTING

hydraulic - straight adapter

1шт.

6

51200013

SENSOR

hydraulic pressure

1шт.

7

217-428

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

9

233705

HYD CONNECTOR,1-5/16" - 12 ORB x 1-1/16" - 12 JIC

3шт.

10

23922

BLOCK

hydraulic aluminum

1шт.

11

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

5шт.

13

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

15

218-728

REDUCER,37 Degree, 1 1/16"-12, Fem x 1 5/16"-12 Male

1шт.

16

9755

CHECK VALVE

FITTING, HYDRAULIC 16 SAE x 1" MJIC

2шт.

17

87329794

FITTING

3/4" mb x 1/2" mj

3шт.

18

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

19

51200093

HYDRAULIC HOSE

1/2" x 34" fl, 1/2" fjic x 3/4" fjic

1шт.

20

412756A1

FITTING

1/2" mb 1/2" fjx

1шт.

21

412757A1

CHECK VALVE

fitting, hydraulic 1/2" mj 1/2" fb

1шт.
