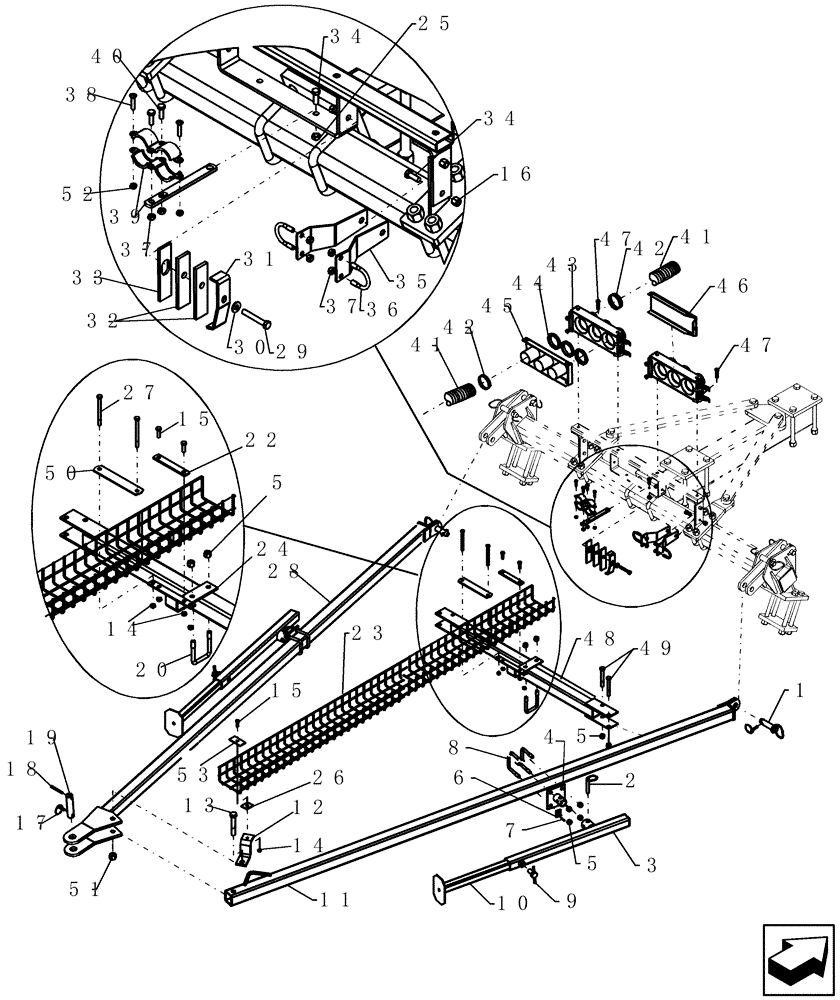

Запчасти Case IH ADX3360 (F.10.D[20]) - TOW BEHIND SDX, ATX AND NFX FIELD HITCH AFTER 10/1999 F - Frame Positioning

1

412768A1

HITCH PIN

1" x 2 3/4" usable

2шт.

2

412752A1

PIN

and chain assembly jack mount

2шт.

3

GE-359

STAND

field hitch - upper

2шт.

4

GH-528

MOUNTING PLATE

hitch support

2шт.

5

86992215

LOCK NUT,1/2"-13, GC

12шт.

6

GH-530

BRACKET

mount, fan shield chain

2шт.

7

80755

COTTER PIN,1/8" OD x 1" L

2шт.

8

1344524C1

U-BOLT

us 1/2" x 2 9/18" w x 3 1/2" d 1" thread

4шт.

9

GE-193A

HANDLE

height adjustment

2шт.

10

GE-358

STAND

field hitch - lower

2шт.

11

351930A1

HITCH

rail RH

1шт.

12

87501450

BRACKET

mount, rear hose tray

1шт.

13

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

14

88902

NUT,3/8"-16

3шт.

15

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

16

231-1446

NUT,3/8" - 16, Gr 5

5шт.

17

6425

LINCH PIN

7/16" x 1 3/8"

1шт.

18

86544809

LOCK PIN,9.53mm OD x 76.2mm L, Slotted

1шт.

19

GE-293A

HITCH PIN

draw assembly

1шт.

Includes linch pin and roll pin

1шт.

20

1344524C1

U-BOLT

us 1/2" x 2 9/18" w x 3 1/2" d 1" thread

1шт.

21

86637736

NUT,7/16"-14, GB

1шт.

22

87501453

CLAMP

front hose tray

1шт.

23

RF-240

TRAY

hose

1шт.

24

87501455

BRACKET

mount, hose tray

1шт.

25

88902

NUT,3/8"-16

1шт.

26

87501485

SPACER

hose tray

2шт.

27

86505980

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

2шт.

28

351932A1

HITCH

rail formed LH

1шт.

29

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

30

1013043

WASHER

3/8" SAE

1шт.

31

1026712

CLAMP

5"

1шт.

32

1026714

ISOLATOR

neoprene 1/4" tk pln

2шт.

33

1026713

CLAMP

backing

1шт.

34

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

35

GH-601

COUPLING

hydraulic mount third line

2шт.

36

7938

U-BOLT

ur 5/16"-18 x 1 3/8" w x 1 5/8" d

2шт.

37

281010

LOCK NUT,7/8"-14, GC

6шт.

38

3236

SELF-TAP SCREW

1/4"-20 x 1 1/4" oh pi plt

2шт.

39

GE-202

CLAMP

for two 3/4" couplers

1шт.

40

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

41

86992286

HOSE,2.50" ID x 100.00'

Spiral PVC Black Order Multiples of 100 Feet

1шт.

This is used from the quick connects to the header elbow

1шт.

42

214-1444

HOSE CLAMP,58.6mm - 82.5mm

1шт.

43

GD-672A

HOLDER

quick connect 2 1/2" female

1шт.

Includes two 413-620, four 425-146, two 5625 and four 4630

1шт.

44

6177

OIL SEAL

quick connect 2 1/2" id

1шт.

45

GD-673

FITTING

hose connector 2 1/2"

1шт.

46

GD-254

COVER

plate hose connect

1шт.

47

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

48

351666A1

BRACKET

SDX hitch

1шт.

49

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

50

87501237

CROSSBAR

mount, top

1шт.

51

86754

NUT,3/4"-10, GB

1шт.

52

280129

NUT,1/4"-20

2шт.

53

87501485

SPACER

hose tray

1шт.
