Запчасти Case IH ADX3360 (F.10.D[09]) - TOW BEHIND FIELD HITCH (PART 2 OF 2) (BSN CBJ0004441) F - Frame Positioning

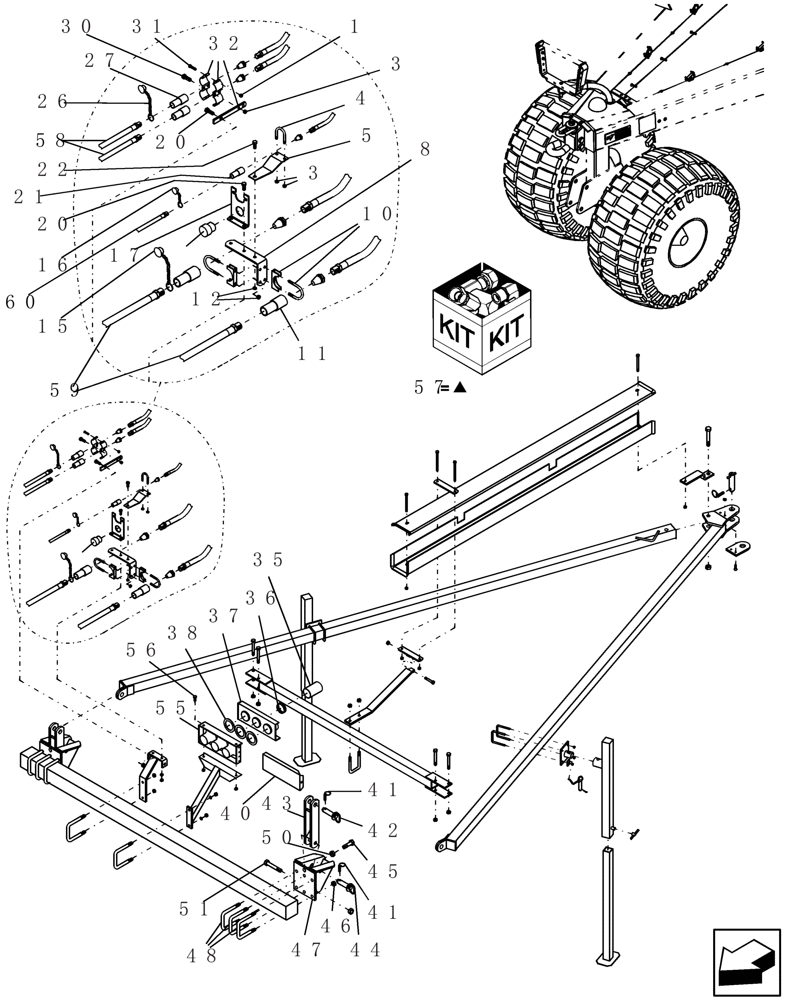

Схема запчастей Case IH ADX3360 - (F.10.D[09]) - TOW BEHIND FIELD HITCH (PART 2 OF 2) (BSN CBJ0004441) F - Frame Positioning
3
50
31
21
10
59
11
20
40
36
55
60
20
43
37
41
17
5
3
15
45
56
51
35
47
44
1
16
27
48
30
32
42
12
41
8
4
57
38
46
22
26
58

Артикул

Название

Примечание

Количество

1

280129

NUT,1/4"-20

2шт.

3

281010

LOCK NUT,7/8"-14, GC

3шт.

4

1569

U-BOLT

ur 5/16" x 1 3/8" w x 2 1/16" d 3/4" thread

1шт.

5

GH-601

COUPLING

hydraulic mount third line

1шт.

8

GL-508

CLAMP

plate

1шт.

10

425021A1

CLAMP

clamp, 2" complete

2шт.

11

9359

COUPLING, QUICK, FEM

1"

2шт.

12

280980

NUT,7/16"-14, GC

2шт.

15

9360

PLUG

dust, pioneer coupler - 1"

2шт.

16

86592083

DUST CAP

pioneer coupler - 1/2"

1шт.

17

GL-509

BRACKET

plug receptacle

1шт.

20

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

21

1994568C1

COUPLING, QUICK, FEM

1/2" fpt

1шт.

22

9706729

BOLT,Hex, 7/16" - 14 x 1", Gr 5, Full Thd

1шт.

26

6934

PLUG

dust, pioneer coupler - 3/4"

2шт.

27

6935

COUPLING, QUICK, FEM

3/4"

2шт.

30

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

31

3236

SELF-TAP SCREW

1/4"-20 x 1 1/4" oh pi plt

2шт.

32

GE-202

CLAMP

for two 3/4" couplers

1шт.

35

86992286

HOSE,2.50" ID x 100.00'

Spiral PVC Black Order Multiples of 100 Feet

1шт.

This is used from the quick connects to the header elbow

1шт.

36

214-1444

HOSE CLAMP,58.6mm - 82.5mm

1шт.

37

GD-673

FITTING

hose connector 2 1/2"

1шт.

38

6177

OIL SEAL

quick connect 2 1/2" id

1шт.

40

GD-254

COVER

plate hose connect

1шт.

41

6425

LINCH PIN

7/16" x 1 3/8"

1шт.

42

351935A1

PIN

draw, 1" x 3 1/2"

1шт.

Includes 6425

1шт.

43

351439A1

PIVOT,Uses 2 - 1" pins

link

1шт.

For TBH Cart and Disc Drills

1шт.

43

GE-197

LINKAGE,Uses 1 each of 1" and 3/4" pins

mount, pivot link

2шт.

For TBH Cart and Hoe Drills

1шт.

44

412769A1

HITCH PIN

1" x 3 1/2" usable

2шт.

Includes 6425

1шт.

45

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

1шт.

46

85700693

NUT,5/8" - 11, Gr C

1шт.

46

280375

NUT,3/4"-10, GC

1шт.

47

GE-196.2

BRACKET

mount

1шт.

48

3951

U-BOLT

us 5/8"-11 4 1/16" w 5 3/8" d GR5

1шт.

48

7818

U-BOLT

us 3/4"-10 4 1/32" w 5 5/8" d GR5

1шт.

50

86632557

JAM NUT,Jam, 3/4"-10, G5

1шт.

51

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

1шт.

55

GD-672A

HOLDER

quick connect 2 1/2" female

1шт.

Includes two 413-620, four 425-146, two 5625 and four 4630

1шт.

55

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

55

87016560

JAM NUT,Jam, 3/8"-16, G5

4шт.

55

5625

LATCH

clamp over center

2шт.

55

4630

RIVET,Pop, 3/16" x .690"

4шт.

56

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

57

GE-518K

HOSE KIT

hose - 2 1/2"

1шт.

Not Shown

1шт.

Includes splice tube GE-518 and two 214-1444 hose clamps

1шт.

57

GE-518

TUBE

splice hose - 2 1/2"

1шт.

57

214-1444

HOSE CLAMP,58.6mm - 82.5mm

2шт.

58

21555

HYDRAULIC HOSE,25.4mm ID x 12319mm L, SAE 100R17

1" x 485" fl, 3/4" mpt x 1" mpt

2шт.

Fan pressure and return

1шт.

59

21560

HYDRAULIC HOSE,19.05mm ID x 12319mm L, SAE 100R17

3/4" x 485" fl, 1/2" mpt x 3/4" mpt

2шт.

Auger pressure and return

1шт.

60

87500095

HYDRAULIC HOSE,19mm ID x 12319mm L

1/2" x 485" fl, 1/2" mpt x 1/2" mpt

1шт.

Fan third line

1шт.

Выбрано товаров: 60
