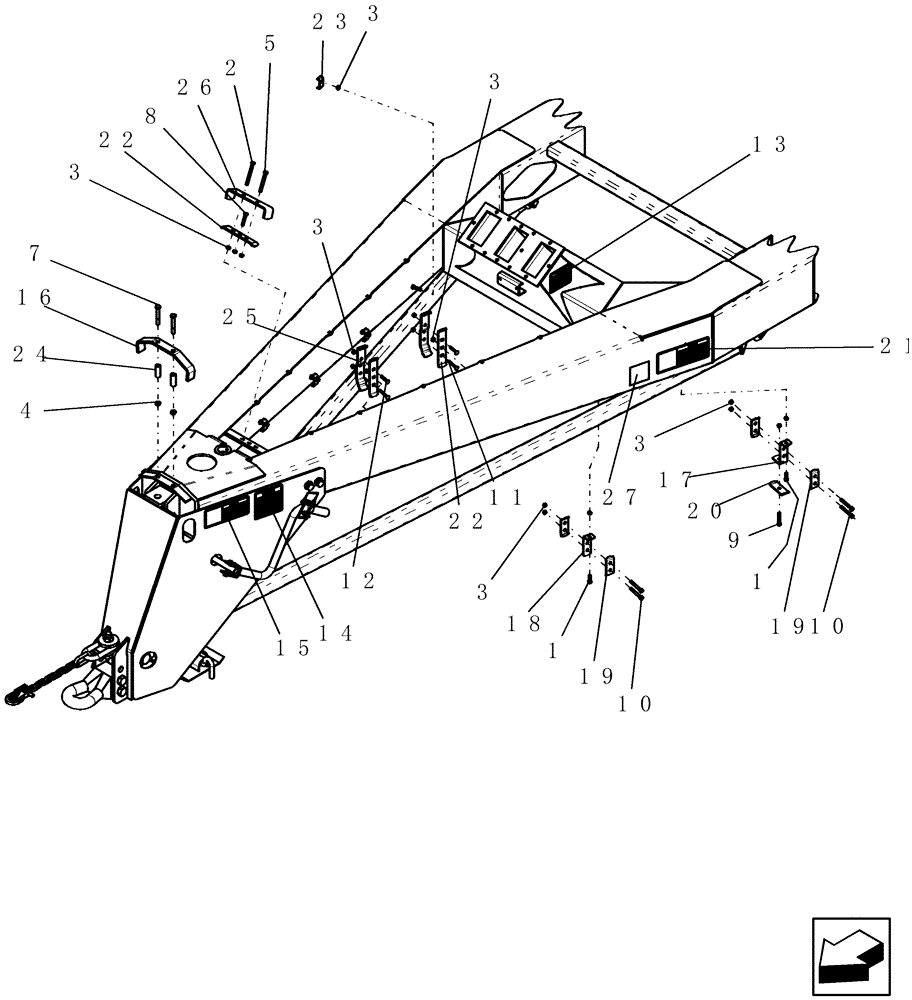

Запчасти Case IH ADX3360 (F.10.D[04]) - FRONT FRAME - TOW BETWEEN HYDRAULIC HOSE CLAMPS (ASN CBJ0004442) F - Frame Positioning

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

2

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

1шт.

3

88902

NUT,3/8"-16

21шт.

4

86992215

LOCK NUT,1/2"-13, GC

2шт.

5

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

1шт.

7

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

8

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

9

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

10

9637240

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

4шт.

11

434-640

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

2шт.

12

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

2шт.

13

GD-300.05

DECAL

attention fan

1шт.

14

GD-500.72

CAUTION DECAL

2шт.

15

GD-500.77

CAUTION DECAL

hydraulics

2шт.

16

GL-355

CLAMP

hose front

1шт.

17

GL-357

BRACKET

hydraulic hose auger

1шт.

18

GL-358

BRACKET

hydraulic hose

1шт.

19

GL-359

CLAMP

hydraulic hose

4шт.

20

GL-594

CLAMP

hyd hose 1/2"

1шт.

21

GL-700.19

DECAL

electrocution hazard

2шт.

22

GL-745

HOSE CLAMP

hitch tube hydraulic

3шт.

23

GL-781

CLAMP

1/4" hyd hose

4шт.

24

GL-811

SPACER

clamp - long

2шт.

25

GL-813

CLAMP

hydraulic hose

2шт.

26

87501423

CLAMP

hose

1шт.

27

87503916

DECAL

hydraulic flow

1шт.
