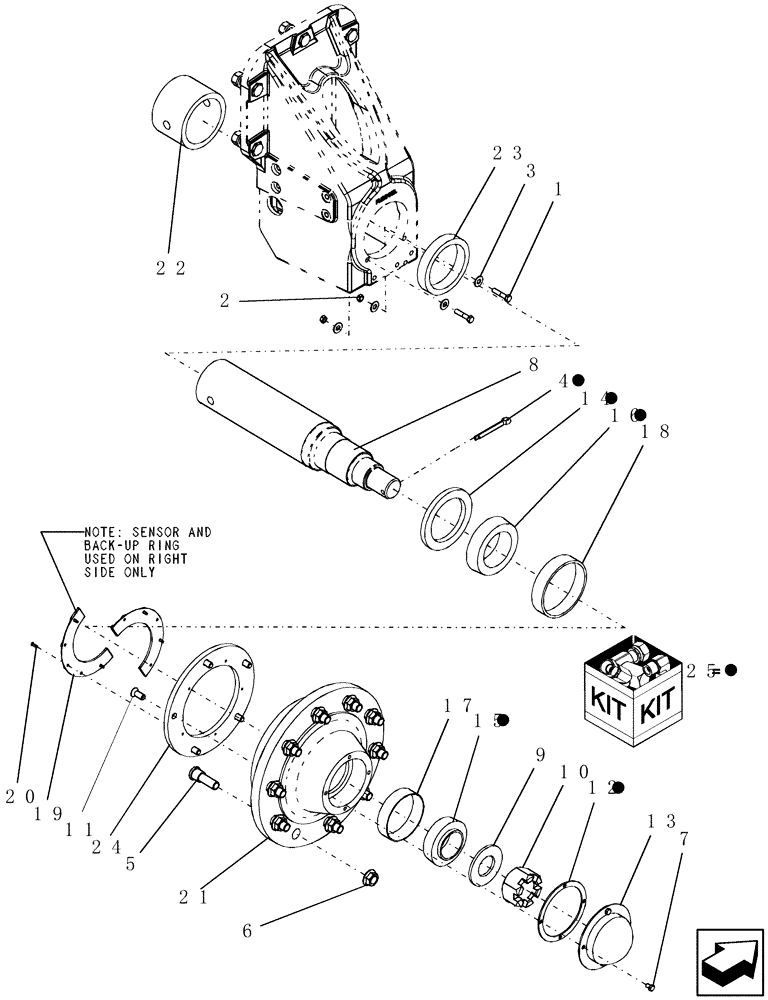

Запчасти Case IH ADX3260 (D.13.B[06]) - 10 BOLT HUB 4.5 INCH SPINDLE D - Travel

1

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

2

88902

NUT,3/8"-16

2шт.

3

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

4

86523960

COTTER PIN,3/8" x 3"

1шт.

5

22792

STUD

3/4"-16 x 3 9/32", G5

10шт.

5

22792

STUD

3/4"-16 x 3 9/32", G5

10шт.

6

9790660

FLANGE NUT,Flg, 3/4"-16, G8

10шт.

7

1027683

BOLT

wheel 5/16"-18 x 1/2", G2

4шт.

8

51200130

SPINDLE

S1020 - 4 1/2" x 22 7/8"

1шт.

9

51200133

WASHER,52mm ID x 101.6mm OD x 6.35mm Thk

spindle wa35 2 1/32" id

1шт.

10

51200125

SLOTTED NUT,2"-12, G5

1шт.

11

51200126

SCREW

cap 1/2"-20 x 1 1/4" G8

5шт.

12

9861

GASKET

rubber

1шт.

13

87506288

HUB CAP

dc28 bolt on

1шт.

14

9864

OIL SEAL

oil SE55

1шт.

15

86837562

ROLLER BEARING,66.67mm ID x 38.35mm W

#HM212049

1шт.

16

A50532

ROLLER BEARING,89.97mm ID x 40.2mm W

#HM218248

1шт.

17

70680631

BEARING CUP,122.24mm OD x 29.72mm W

#HM212010

1шт.

18

A50529

BEARING CUP,147.03mm OD x 32.5mm W

#HM218210

1шт.

19

21681

RING

sensor half of 60 tooth

2шт.

20

22007

SELF-TAP SCREW

#8 x 5/8" fh b pi

5шт.

21

87506289

HUB

H1021 with cups & studs

1шт.

Includes 9868, 9869, 429-2912 and 7661

1шт.

22

GL-380

COLLAR

ring, inner - 32" wheel spindle

1шт.

23

GL-381

COLLAR

ring, outer - 32" wheel spindle

1шт.

24

GM-325

RING

backup

1шт.

25

412770A1

WHEEL BEARING KIT

hub completion - h1021

1шт.

Includes 432-2448, 9861, 9864, 9865 and 9866

1шт.
