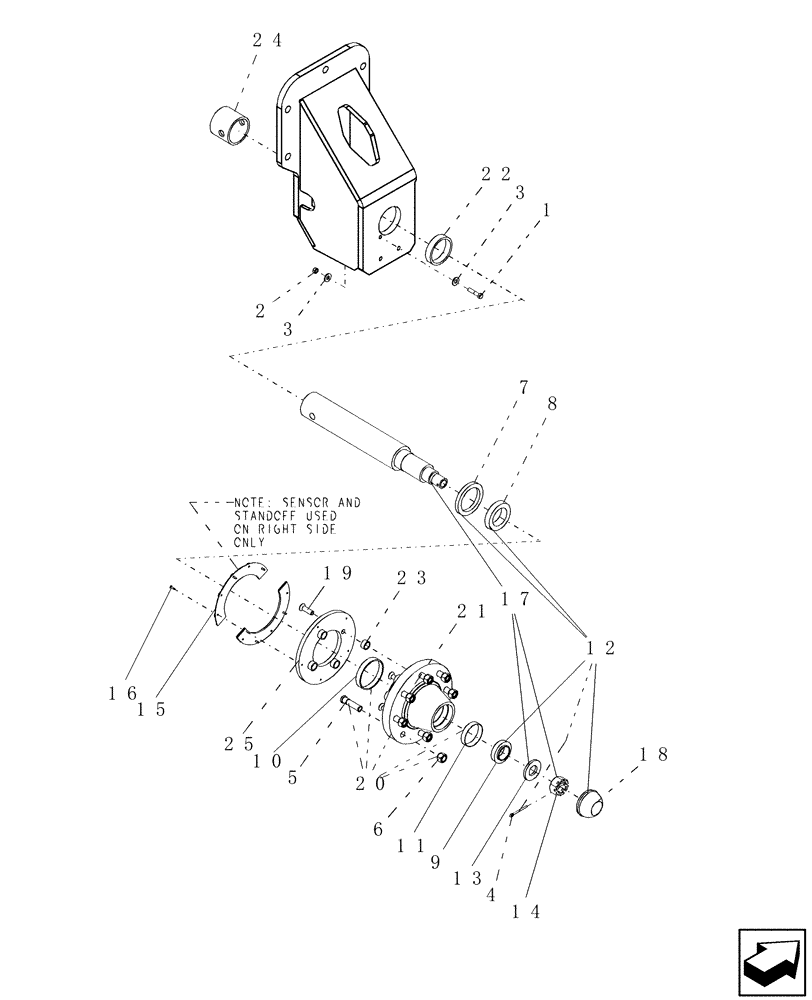

Запчасти Case IH ADX3260 (D.13.B[04]) - 8 BOLT REAR SINGLE HUB 3 INCH SPINDLE D - Travel

1

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

2

88902

NUT,3/8"-16

1шт.

3

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

4

87400

COTTER PIN,3/16" x 2"

1шт.

5

2739

STUD

5/8"-18 x 2 1/2" wb46

8шт.

6

554480R1

WHEEL NUT

hub wheel 5/8"-18, GB

8шт.

7

5044

OIL SEAL

75-88lm hub

1шт.

8

86577076

BEARING ASSY,55.75mm ID x 122.26mm OD x 33.54mm W

#387as

1шт.

9

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

Cup & Cone

1шт.

10

105497H

BEARING CUP,96.85mm OD x 15.77mm W

#382-A

1шт.

11

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

Cup & Cone

1шт.

12

412772A1

KIT

hub bearing completion h817

1шт.

Includes 87400, 5044, 5045, 5046 and 51200087

1шт.

13

412778A1

WASHER,31.75mm ID

spindle wa23 1 1/4" id

1шт.

14

7666

SLOTTED NUT,1 1/4"-12, G2

1шт.

15

21681

RING

sensor half of 60 tooth

1шт.

16

22007

SELF-TAP SCREW

#8 x 5/8" fh b pi

2шт.

17

412926A1

SPINDLE

S817 - 3" x 21 5/16" with nut and washer

1шт.

18

51200087

CAP

Hub H817 & 75-88LM

1шт.

19

51200098

BOLT,1/2" - 20 x 1 3/4"

4шт.

20

87505485

HUB

H817-4 assembly with cups & studs & nuts

1шт.

21

CC-180A

STUB AXLE/STEERING S

spindle assembly, h817 - 21 19/64"

1шт.

22

GH-535

SLEEVE

spindle outer

4шт.

23

51200896

SPROCKET

60 x 48

1шт.

24

GI-191

SLEEVE

inner

1шт.

25

GI-192

SPACER

sensor ring - h817 hub

1шт.
