Запчасти Case IH ADX3260 (A.50.A[40]) - FLOW REMOTE SENSOR HARNESS A - Distribution Systems

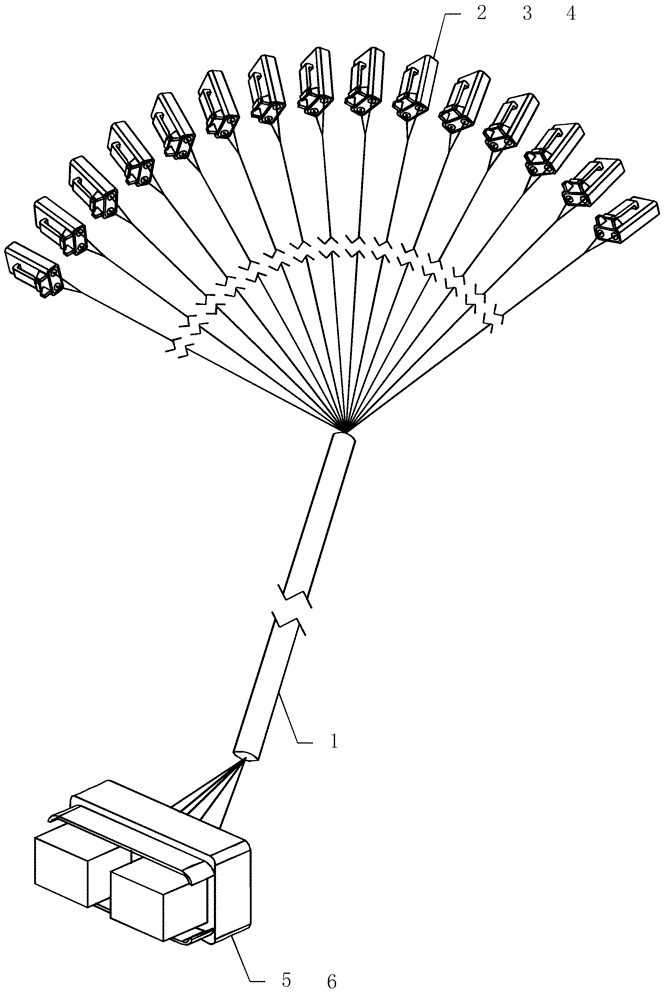

Схема запчастей Case IH ADX3260 - (A.50.A[40]) - FLOW REMOTE SENSOR HARNESS A - Distribution Systems
1
5
3
4
6
2

Артикул

Название

Примечание

Количество

1

14322V2

HARNESS

flow sensor 15 input

1шт.

2

222135A1

CONNECTOR, ELEC

CONNECTOR plastic 2c plug

15шт.

3

223952A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

socket 18-20awg

30шт.

4

222846A1

STOP LOCK

2c plug connector

15шт.

5

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

30c b plug

1шт.

6

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

socket 16-20awg

30шт.

Выбрано товаров: 6
