Запчасти Case IH ADX3260 (A.50.A[36]) - FLOW REMOTE HARNESS A - Distribution Systems

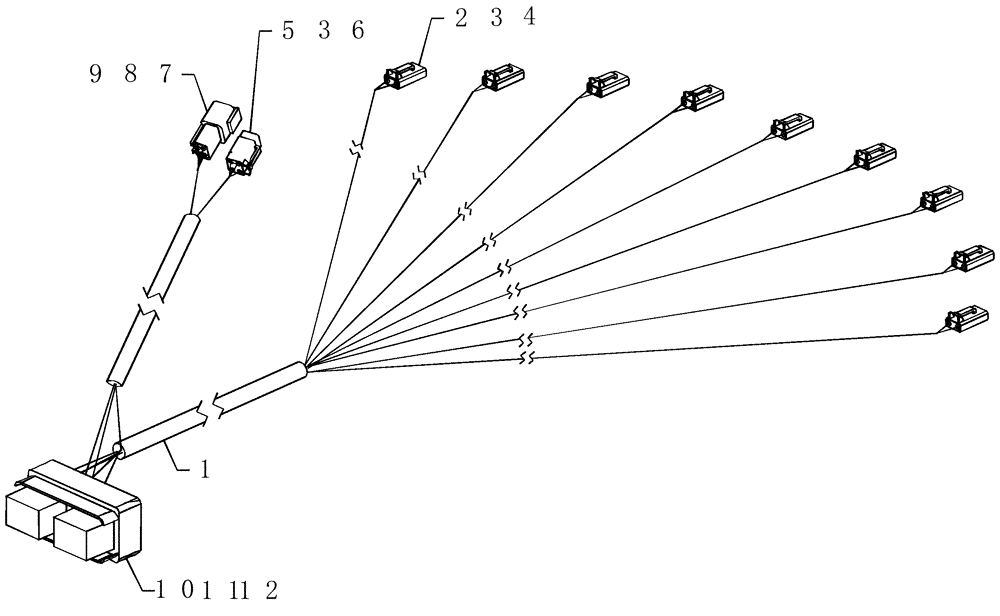

Схема запчастей Case IH ADX3260 - (A.50.A[36]) - FLOW REMOTE HARNESS A - Distribution Systems
2
4
9
5
8
11
10
3
12
1
7
3
6

Артикул

Название

Примечание

Количество

1

87419312

HARNESS

flow remote 9 input, Years: -31-JUL-05

1шт.

1

87460132

HARNESS

flow remote 9 input, Start Year: 01-AUG-05

1шт.

2

222135A1

CONNECTOR, ELEC

CONNECTOR plastic 2c plug

9шт.

3

223952A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

socket 18-20awg

22шт.

4

222846A1

STOP LOCK

2c plug connector

9шт.

5

277904A1

ELEC CONNECTOR,Female, 4 Pin

plastic 4c plug

1шт.

6

279794A1

STOP LOCK,Locking, Orange

4c plug connector

1шт.

7

277905A1

ELEC CONNECTOR,Male, 4 Pin

plastic 4c receptacle

1шт.

8

223950A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

18-20awg copper nickel plated

4шт.

9

279795A1

STOP LOCK

4c receptacle connector

1шт.

10

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

30c plug b key

1шт.

11

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

socket 16-20awg

26шт.

12

225055C1

PLUG

connector 20awg

4шт.

Выбрано товаров: 13
