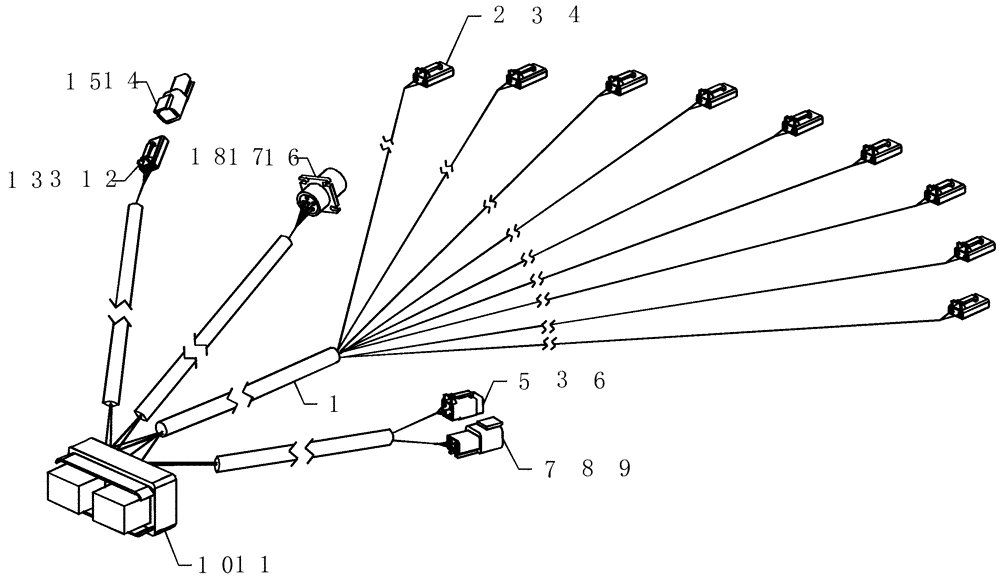

Запчасти Case IH ADX3260 (A.50.A[34]) - FLOW GATEWAY HARNESS A - Distribution Systems

1

86984457

HARNESS

flow gateway 9 input rs232

1шт.

2

222135A1

CONNECTOR, ELEC

CONNECTOR plastic 2c plug

9шт.

3

223952A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

socket 18-20awg

25шт.

4

222846A1

STOP LOCK

2c plug connector

9шт.

5

277904A1

ELEC CONNECTOR,Female, 4 Pin

plastic 4c plug

1шт.

6

279794A1

STOP LOCK,Locking, Orange

4c plug connector

1шт.

7

277905A1

ELEC CONNECTOR,Male, 4 Pin

plastic 4c receptacle

1шт.

8

223950A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

18-20awg copper nickel plated

4шт.

9

279795A1

STOP LOCK

4c receptacle connector

1шт.

10

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

30c plug b key

1шт.

11

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

socket 16-20awg

1шт.

12

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

1шт.

13

51200009

STOP LOCK

3c plug

1шт.

14

87696545

CONTACT HOUSING,Male, 3 Pole

plastic 3c receptacle

1шт.

15

225055C1

PLUG

connector 20awg

3шт.

16

425059A1

ELEC CONNECTOR,6 Pin

plastic receptacle 6c

1шт.

17

225348C1

ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2

pin 16-18awg

1шт.

18

84068583

PLUG,12 - 16 Ga, White

connector cavity white plastic

2шт.
