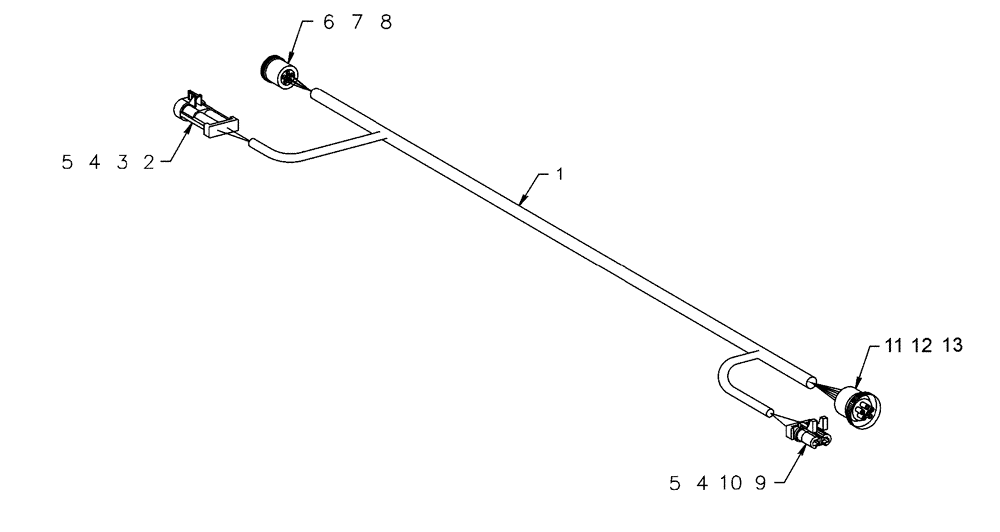

Запчасти Case IH ADX3260 (A.50.A[25]) - ADX3260 FRAME EXTENSION HARNESS A - Distribution Systems

1

51200039

HARNESS

cart 55" extension

1шт.

2

292549A1

CONNECTOR, ELEC

CONNECTOR plastic 2c receptacle

1шт.

3

225452C1

CONNECTOR, ELEC

CONNECTOR contact pin 12-10awg brs tin p

2шт.

4

419992A1

SEAL

connector ppl 4.5-3.6 mm

4шт.

5

14890

STOP LOCK

2c plug connector

2шт.

6

425059A1

ELEC CONNECTOR,6 Pin

plastic receptacle 6c

1шт.

7

225348C1

ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2

pin 16-18awg

4шт.

8

225406C1

ELEC. TERMINAL PIN,Male, 1 - 2 mm2

pin 14-16awg

2шт.

9

87688710

MULTIPOLE CONNECTOR,Female, 2 Pole

cab plastic 2c plug

1шт.

10

225444C1

CONNECTOR, ELEC

CONNECTOR contact skt 12-10awg brs tin p

2шт.

11

425050A1

ELEC CONNECTOR,Female, 6 Pin

plastic 6c plug

1шт.

12

225404C1

POWER SOCKET,Nickel, 1.0 - 2.0mm

socket 14-16awg

2шт.

13

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

4шт.
