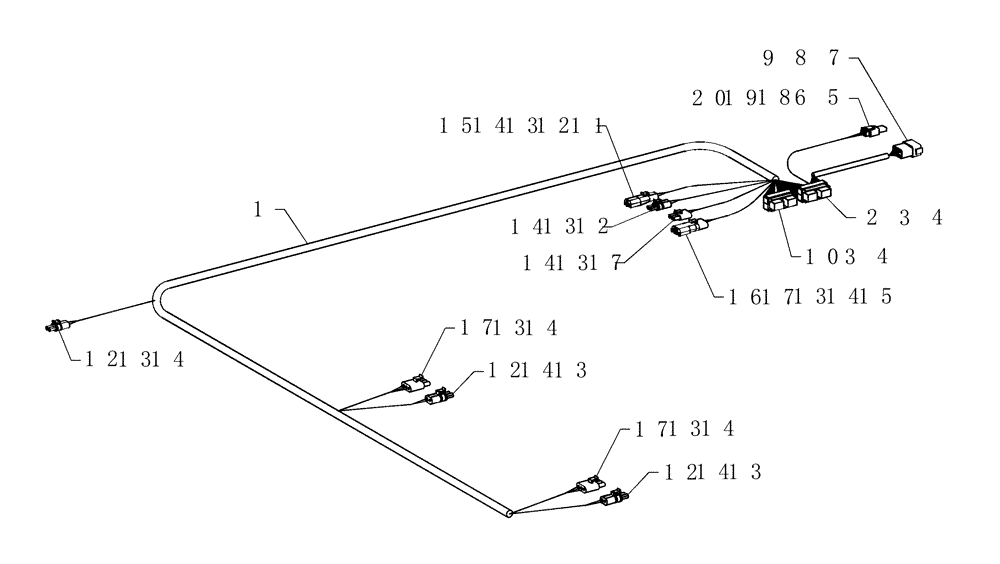

Запчасти Case IH ADX3260 (A.50.A[06]) - AIR CONTROL HARNESS A - Distribution Systems

1

51200042

HARNESS

air control

1шт.

2

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

30c plug b key

1шт.

3

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

socket 16-20awg

37шт.

4

14999

ELEC CONNECTOR

plug, cavity, cinch

23шт.

5

87696545

CONTACT HOUSING,Male, 3 Pole

cab plastic rcp 3c

1шт.

6

225055C1

PLUG

connector 20awg

3шт.

7

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

elec plastic 12c receptacle

1шт.

8

223950A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

18-20awg copper nickel plated

12шт.

9

223676A1

WEDGE

elec lock 12c receptacle

1шт.

10

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

30c b plug

1шт.

11

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

2шт.

12

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

5шт.

13

87644909

WIRE CONNECTOR,Female, 3 Pins

plastic 3c plug

22шт.

14

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

22шт.

15

225127C1

PLUG

cavity, green rubber

5шт.

16

245485C1

ELEC CONNECTOR,Male, 3 Pin

plastic 3c receptacle

2шт.

17

87644909

WIRE CONNECTOR,Female, 3 Pins

plastic 3c plug

2шт.

18

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

1шт.

19

87705586

WEDGE

lock 3c plug

1шт.

20

223952A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

socket 18-20awg

3шт.
