Запчасти Case IH ADX3260 (A.40.A[03]) - TRANSPORT BAR LIGHTING HARNESS A - Distribution Systems

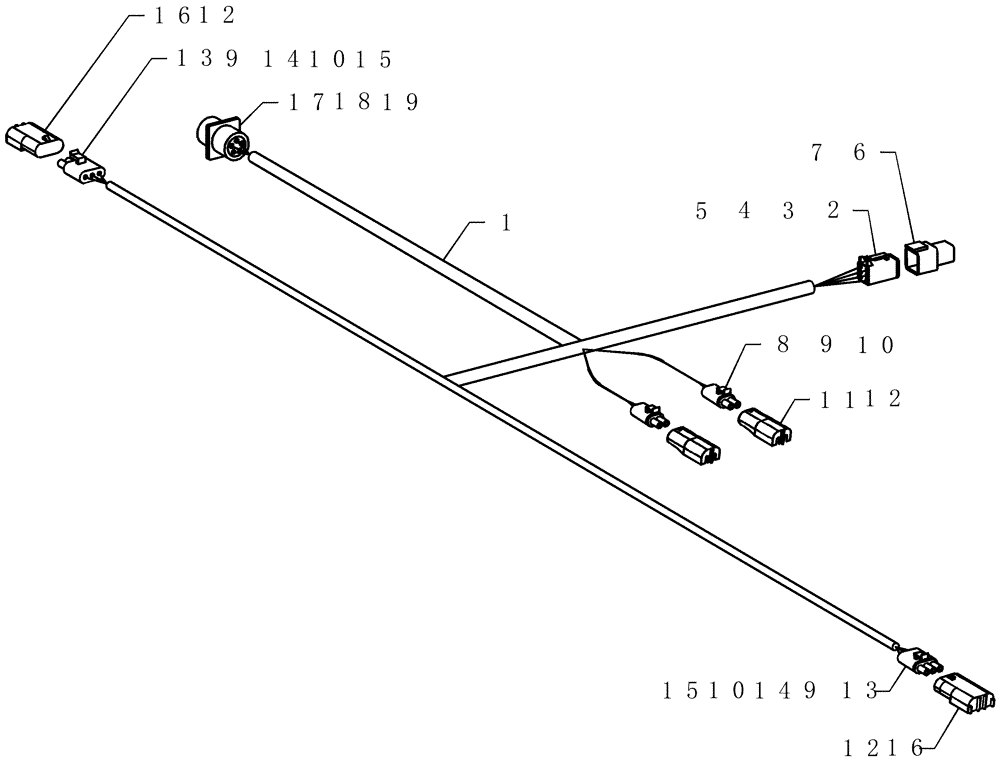

Схема запчастей Case IH ADX3260 - (A.40.A[03]) - TRANSPORT BAR LIGHTING HARNESS A - Distribution Systems
7
12
12
15
13
15
16
18
1
9
2
17
5
19
14
11
6
9
10
9
4
16
10
12
10
3
14
13
8

Артикул

Название

Примечание

Количество

1

412916A1

HARNESS

lighting transport bar

1шт.

2

51200043

ELEC CONNECTOR,6 Pin

Plastic 6c Plug

1шт.

3

51200044

STOP LOCK

6c plug connector

2шт.

4

225404C1

POWER SOCKET,Nickel, 1.0 - 2.0mm

socket 14-16awg

5шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

1шт.

6

425282A1

ELEC CONNECTOR,6 Pin

plastic 6c receptacle

1шт.

7

84068583

PLUG,12 - 16 Ga, White

connector cavity white plastic

6шт.

8

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

2шт.

9

225125C1

SEAL

Connector Grey 3.49 - 2.81 mm

6шт.

10

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

socket 14-16awg

6шт.

11

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

2шт.

12

225127C1

PLUG

cavity, green rubber

10шт.

13

87644909

WIRE CONNECTOR,Female, 3 Pins

plastic 3c plug

2шт.

14

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

4шт.

15

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

socket 18-20awg

4шт.

16

245485C1

ELEC CONNECTOR,Male, 3 Pin

plastic 3c receptacle

2шт.

17

225222C1

ELEC CONNECTOR,Male, 5 Pin

plastic 5c receptacle fl

1шт.

18

225406C1

ELEC. TERMINAL PIN,Male, 1 - 2 mm2

pin 14-16awg

4шт.

19

225348C1

ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2

pin 16-18awg

1шт.

Выбрано товаров: 19
