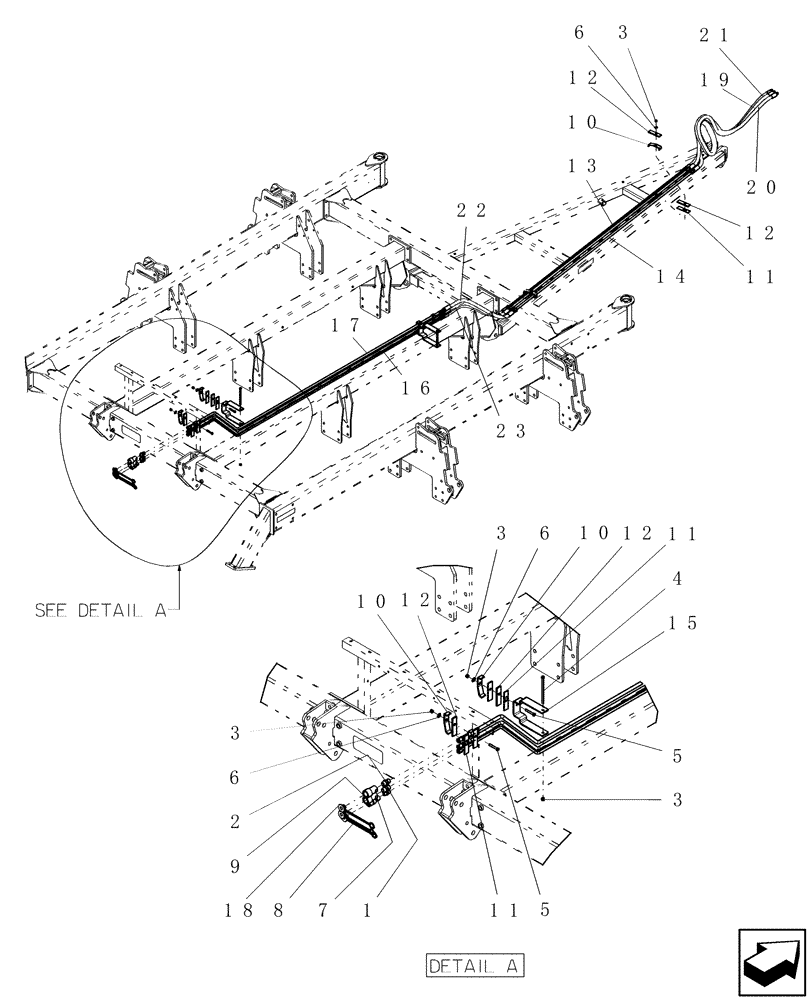

Запчасти Case IH ADX3260 (A.12.A[08]) - TBH HYD LINES ACROSS SDX40 (BSN CBJ0004433) A - Distribution Systems

1

132341

HYD CONNECTOR,3/4" - 16 JIC x 1/2" - 14 NPT

1шт.

2

86977779

HYD CONNECTOR,1-1/16" - 12 JIC x 3/4" - 14 NPT

2шт.

3

232-1446

NUT,3/8"-16, GC

7шт.

4

280284

BOLT,Hex, 3/8" - 16 x 7", Gr 5

2шт.

5

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

3шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

7

1994568C1

COUPLING, QUICK, FEM

1/2" fpt

1шт.

8

86592083

DUST CAP

pioneer coupler - 1/2"

1шт.

9

6935

COUPLING, QUICK, FEM

3/4"

2шт.

10

1026712

CLAMP

5"

5шт.

11

1026713

CLAMP

backing

5шт.

12

1026714

ISOLATOR

neoprene 1/4" tk pln

10шт.

13

1026743

HYD TUBE,0.5" Diameter, 108" Length

assy 1/2" x 108"

1шт.

14

1026745

TUBE,0.75" Diameter, 108" Length

assy 3/4" x 108"

2шт.

15

312995A1

MOUNTING PARTS

hyd clamp

2шт.

16

425678A2

HYD TUBE

1/2" x 132"

1шт.

17

425679A2

HYD TUBE

3/4" x 132"

2шт.

18

6934

PLUG

dust, pioneer coupler - 3/4"

2шт.

19

GR-256A

HYDRAULIC HOSE,0.75" ID x 96.00"

Fan pressure

1шт.

20

GR-257A

HYDRAULIC HOSE,0.75" ID x 96.00"

Fan return

1шт.

21

GR-260A

HYDRAULIC HOSE

ext case drain

1шт.

22

350404A1

HOSE

3/4" x 48"

2шт.

23

351469A1

HOSE

1/2" x 48"

1шт.
