Запчасти Case IH ADX3260 (A.12.A[02]) - TBH HYD LINES ACROSS PTX600 (BSN CBJ0004433) A - Distribution Systems

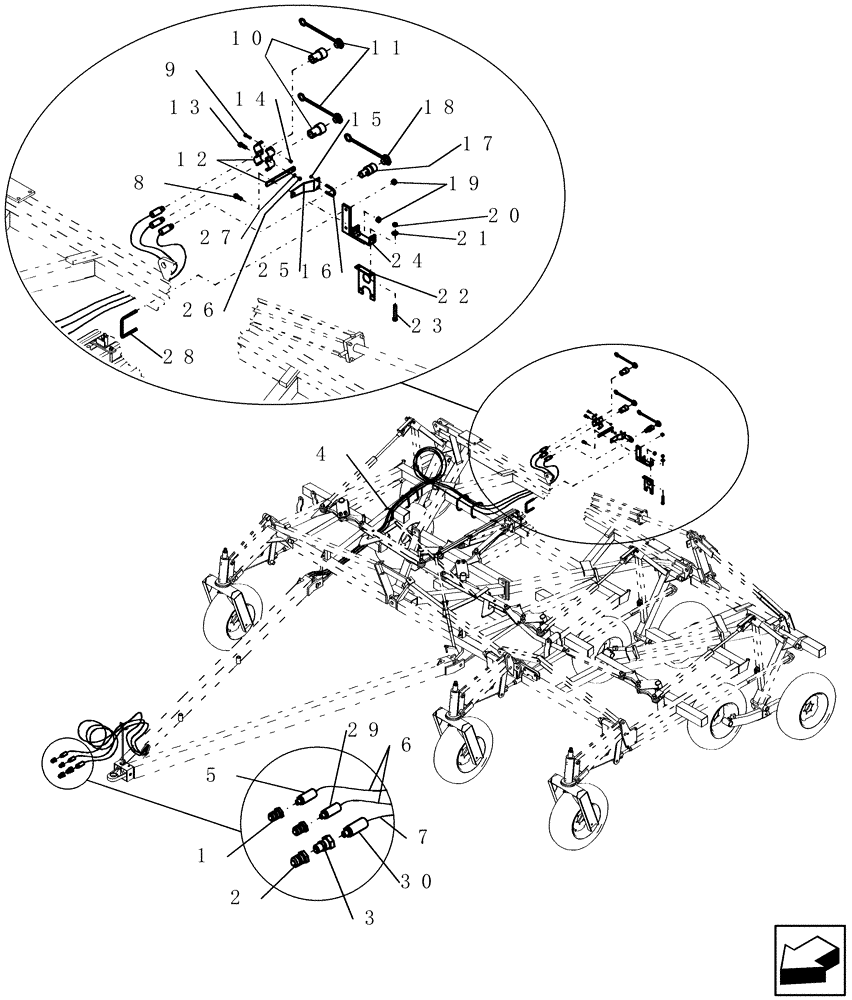

Схема запчастей Case IH ADX3260 - (A.12.A[02]) - TBH HYD LINES ACROSS PTX600 (BSN CBJ0004433) A - Distribution Systems
6
11
18
2
1
30
29
24
14
19
8
9
25
28
21
5
12
10
20
15
17
22
23
16
13
27
3
26
7
4

Артикул

Название

Примечание

Количество

1

9412

QUICK MALE COUPLING

1/2"

2шт.

2

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

3

218-5254

HYD CONNECTOR,3/4" - 16 ORB x 1/2" - 14 NPT

1шт.

4

87557085

CABLE TIE

CABLE STRAP 24" with stainless locking clip

10шт.

5

87501182

COVER

hose label, 1 1/2"

2шт.

5

GL-700.33

DECAL

fan return

2шт.

6

21560

HYDRAULIC HOSE,19.05mm ID x 12319mm L, SAE 100R17

3/4" x 485" fl, 1/2" mpt x 3/4" mpt

2шт.

7

87500095

HYDRAULIC HOSE,19mm ID x 12319mm L

1/2" x 485" fl, 1/2" mpt x 1/2" mpt

1шт.

8

9706729

BOLT,Hex, 7/16" - 14 x 1", Gr 5, Full Thd

2шт.

9

3236

SELF-TAP SCREW

1/4"-20 x 1 1/4" oh pi plt

2шт.

10

6935

COUPLING, QUICK, FEM

3/4"

2шт.

11

6934

PLUG

dust, pioneer coupler - 3/4"

2шт.

12

GE-202

CLAMP

for two 3/4" couplers

1шт.

13

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

14

280129

NUT,1/4"-20

2шт.

15

280736

NUT,5/16"-18, GC

2шт.

16

1569

U-BOLT

ur 5/16" x 1 3/8" w x 2 1/16" d 3/4" thread

1шт.

17

1994568C1

COUPLING, QUICK, FEM

1/2" fpt

1шт.

18

412733A1

PLUG

dust, pioneer coupler 1/2"

1шт.

19

280980

NUT,7/16"-14, GC

4шт.

20

9628503

NUT,3/8"-16, G5

2шт.

21

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

22

GL-509

BRACKET

plug receptacle

1шт.

23

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

24

GE-186

SUPPORT

hydraulic couplers & wiring harness bracket

1шт.

25

GH-601

COUPLING

hydraulic mount third line

1шт.

26

9635082

NUT,5/16" - 18, Gr 5

2шт.

27

80681

LOCK WASHER,5/16"

2шт.

28

5089

U-BOLT

us 7/16"-14 4 1/8" w 5 3/8" d GR2

1шт.

29

87501182

COVER

hose label, 1 1/2"

2шт.

29

GL-700.32

DECAL

fan pressure

2шт.

30

GL-700.42

DECAL

drain

2шт.

30

87501182

COVER

hose label, 1 1/2"

2шт.

Выбрано товаров: 33
