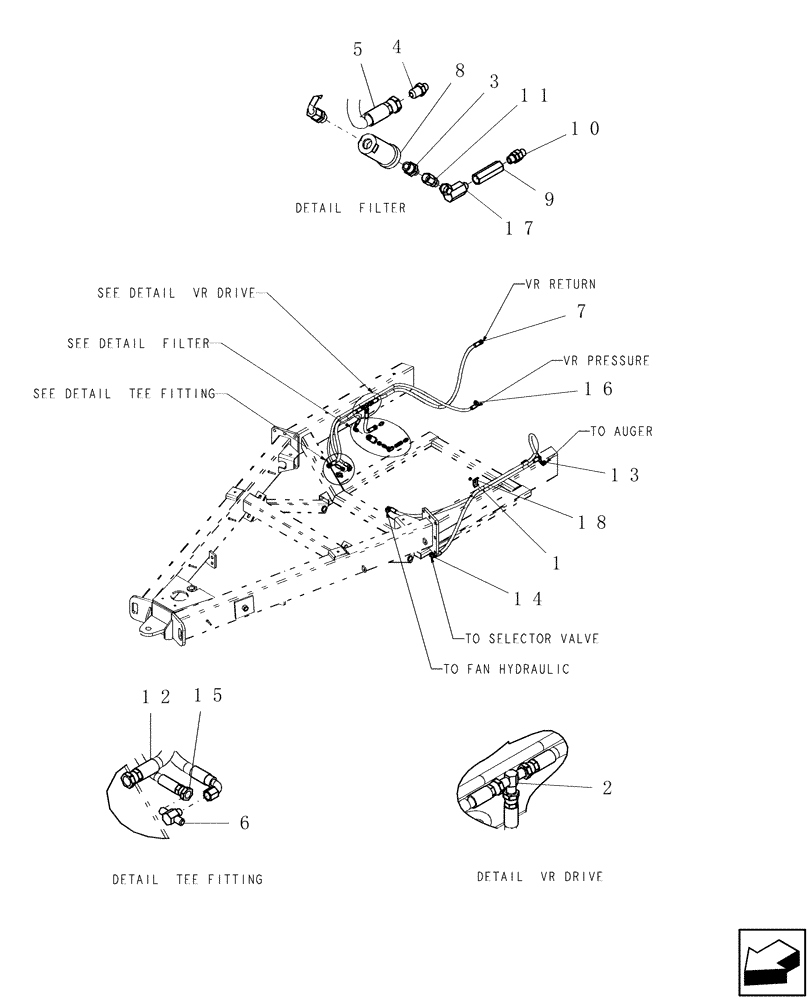

Запчасти Case IH ADX3260 (A.10.A[13]) - ADX3260 MAIN FRAME HYDRAULICS A - Distribution Systems

1

88902

NUT,3/8"-16

2шт.

2

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

3

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

4

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

5

21656

HYDRAULIC HOSE

1/2" x 20" fl, 1/2" fjic x 1/2" fjic

1шт.

6

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

7

87506435

HYDRAULIC HOSE

1/2" x 51" fl, 1/2" fjic x 1/2" fjic

1шт.

8

22446

HYDRAULIC OIL FILTER

complete assembly

1шт.

Includes 22156 and 51200102

1шт.

9

22447

VALVE

1 1/4" gpm p. comp deltrol pressure compensated

1шт.

10

22448

FITTING

hydraulic - straight adapter 3/8" morb x 3/8" morb

1шт.

11

22449

FITTING

hydraulic swivel adapter 3/8" mb 3/8" fjx

1шт.

12

425439A1

HYDRAULIC HOSE

1/2" x 30" fl, 1/2" fjic x 1/2" fjic

1шт.

13

51200877

HYDRAULIC HOSE

1/2" x 55" fl, 1/2" mjic x 1/2" fjic

1шт.

14

51200878

HYDRAULIC HOSE

1/2" x 80" fl, 1/2" fjic x 1/2" fjic

1шт.

15

87506454

HYDRAULIC HOSE

1/4" x 37" fl, 3/8" fjic x 3/8" fjic

1шт.

16

51200879

HYDRAULIC HOSE

3/8" x 62" fl, 3/8" fjic x 3/8" fjic

1шт.

17

86512959

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

18

CC-105

HOSE CLAMP

for 2 hoses

2шт.
