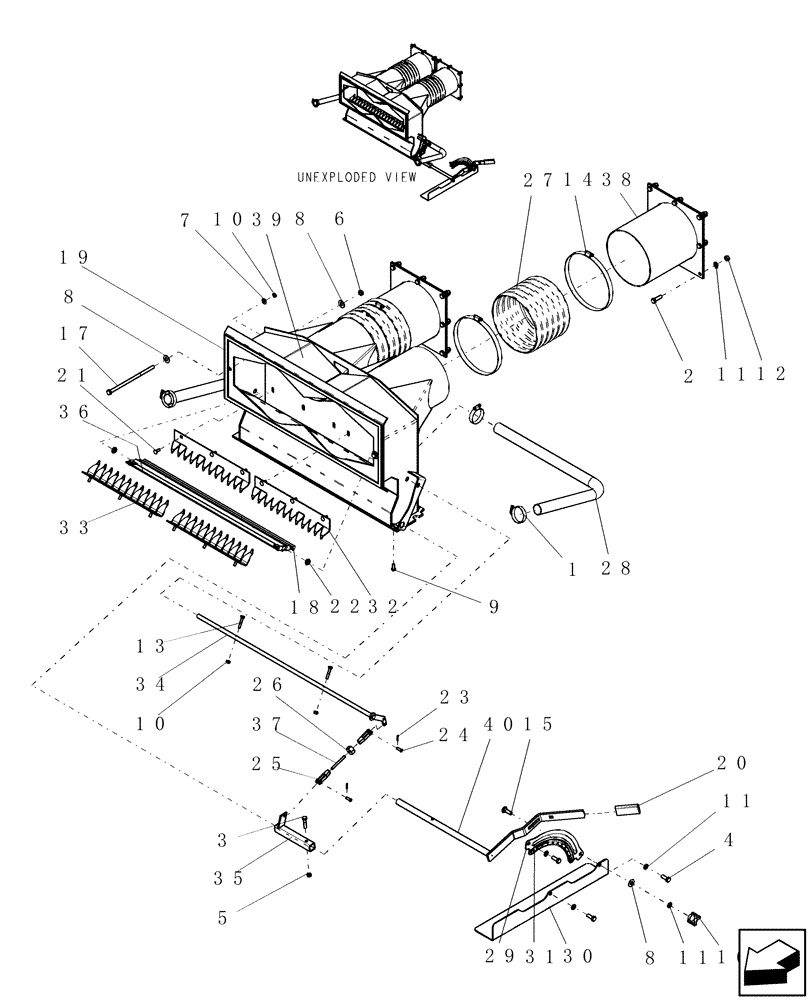

Запчасти Case IH ADX3260 (L.10.F[34]) - ADX3260 OUTLET PLENUM - 3RD TANK L - Field Processing

1

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

4шт.

2

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

16шт.

3

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

1шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

5

281010

LOCK NUT,7/8"-14, GC

1шт.

6

88902

NUT,3/8"-16

2шт.

7

95-21031

WASHER,1/4"

12шт.

8

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

9

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

10шт.

10

280129

NUT,1/4"-20

14шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

20шт.

12

9628503

NUT,3/8"-16, G5

16шт.

13

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

14

5171

HOSE CLAMP

#128 type f 6 1/2" to 8 1/2"

4шт.

15

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

1шт.

16

6909

KNOB

plastic 4-prong 3/8" thru hole brass insert

1шт.

17

86505981

BOLT,Hex, 3/8" - 16 x 8", Gr 5

2шт.

18

425465A1

SEAL

sponge trim round 31"

1шт.

Cut 31" from bulk roll marked 7649P

1шт.

18

86992288

RUBBER SEAL

sponge trim round

1шт.

Must be ordered in multiples of 25

1шт.

19

425462A1

FOAM

sponge 1/2" w x 3/8" thick

1шт.

Order in multiples of 20

1шт.

20

9460

CAP

1/4" x 1 1/4" x 3"

1шт.

21

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

12шт.

22

51200057

GROMMET

3/4" od x 7/16" id x 1/4" thick

2шт.

23

88788

COTTER PIN,3/32" x 1/2"

2шт.

24

22153

CLEVIS PIN

1/4" x 3/4"

2шт.

25

51200063

LINKAGE YOKE

clevis end 1/4" x 2"

2шт.

26

86509309

NUT,1/4"-28, G5

1шт.

27

51200874

INTAKE AIR HOSE,6.00"

INTAKE AIR HOSE , Air Transition 6.00"

2шт.

28

51200101

HOSE,1.25" ID x 32.00"

Flex-Haust Type CW-GP

2шт.

29

GI-319

MOUNTING PLATE

air control decal

1шт.

30

GI-332

SHIELD

air control handle

1шт.

31

GI-500.16

DECAL

air control

1шт.

32

GI-624

BAFFLE

bottom, sawtooth

2шт.

33

GI-697

BAFFLE

top, sawtooth

2шт.

34

GI-712

SHAFT

damper

1шт.

35

GI-713

CRANK

air control

1шт.

36

GI-715

BAFFLE

panel

1шт.

37

GI-716

THREADED ROD

damper

1шт.

38

GI-717

TUBE

splice, air duct

2шт.

39

GI-755

CHAMBER

air damper

1шт.

40

GI-954

HANDLE

air control

1шт.
