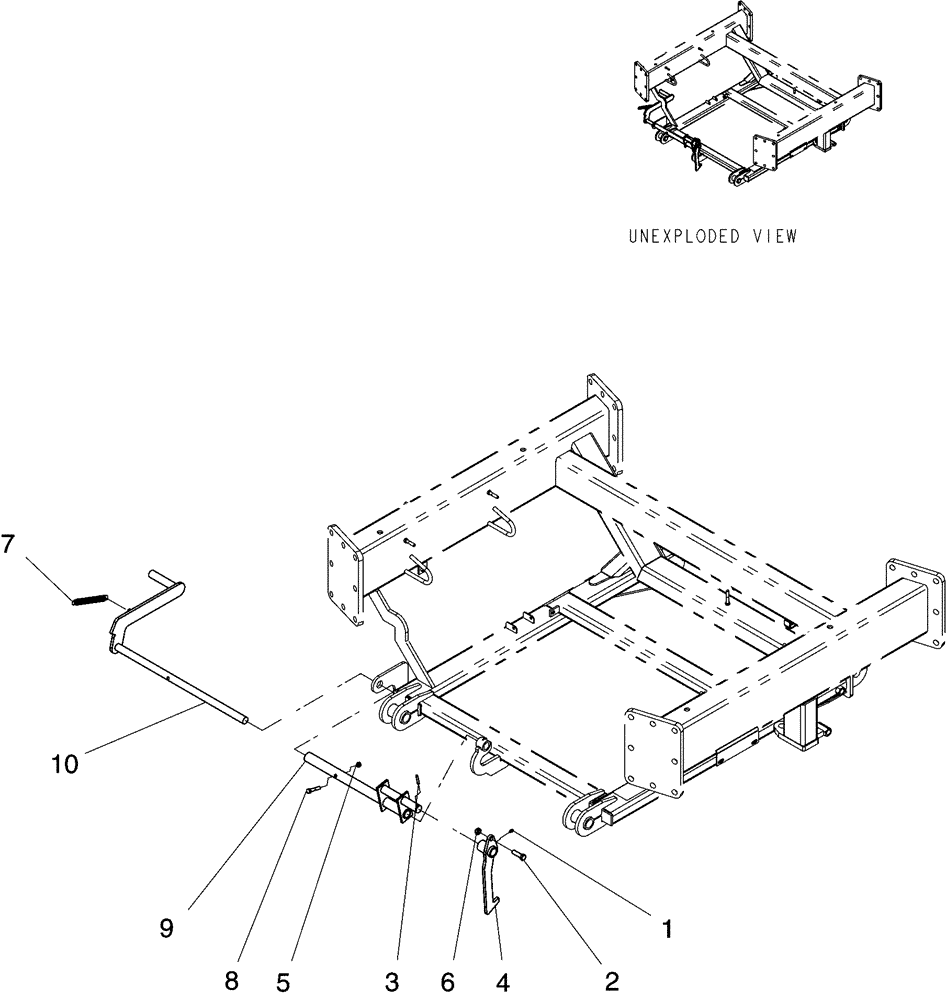

Запчасти Case IH ADX3260 (L.10.F[33]) - ADX3260 MANIFOLD LIFT AND LOCK L - Field Processing

1

88775

LUBE NIPPLE,1/4"-28

1шт.

2

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

3

9632

ROLL PIN

1/4" x 1 1/2"

1шт.

4

GI-960

LINK

manifold lift

1шт.

5

88902

NUT,3/8"-16

1шт.

6

86992215

LOCK NUT,1/2"-13, GC

1шт.

7

87506299

TENSION SPRING

7/64" wire 7/8" od x 6" long

1шт.

8

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

9

GI-201

ARM

manifold lift crank

1шт.

10

GI-961

HANDLE

manifold lift

1шт.
