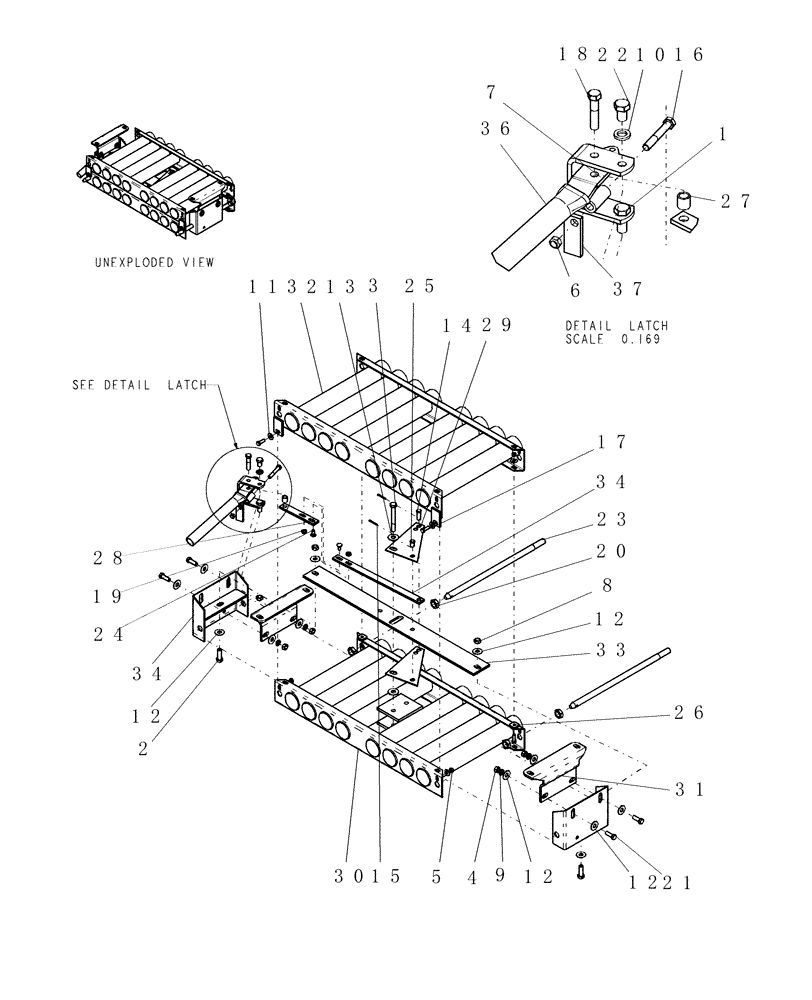

Запчасти Case IH ADX3260 (L.10.F[32]) - ADX3260 INTERMEDIATE MANIFOLD TBH L - Field Processing

1

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.

2

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

3

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

4

280717

NUT,7/16"-14, G5

4шт.

5

281010

LOCK NUT,7/8"-14, GC

4шт.

6

88902

NUT,3/8"-16

1шт.

7

280980

NUT,7/16"-14, GC

1шт.

8

86992215

LOCK NUT,1/2"-13, GC

3шт.

9

81547

LOCK WASHER,7/16"

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

11

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

12

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

12шт.

13

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

14

1841

CLEVIS PIN

1/2" x 1 1/4"

1шт.

15

80755

COTTER PIN,1/8" OD x 1" L

2шт.

16

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

17

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

18

280117

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

19

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

20

86632557

JAM NUT,Jam, 3/4"-10, G5

4шт.

21

9627887

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

4шт.

22

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

1шт.

23

412781A1

STUD

3/4"-10 x 18 1/4"

2шт.

24

51200045

CARRIAGE BOLT

5/16"-18 x 3/4", G5

2шт.

25

GH-145

CLEVIS PIN

1/2" x 11/16"

1шт.

26

GH-241

SPACER

double shoot manifold

2шт.

27

GH-250

SPACER

actuator arm

1шт.

28

GH-251

ARM

actuator short

1шт.

29

GH-253

PLATE

actuator intermediate manifold

2шт.

30

GI-363

MANIFOLD

intermediate

1шт.

31

GI-419

BRACKET

manifold mount

2шт.

32

GL-448

MANIFOLD

double/triple shoot

1шт.

33

GL-449

PLATE

crossmember, intermediate manifold

1шт.

34

GL-450

POWER ARM

long

1шт.

35

GM-324

BRACKET

mount, intermediate manifold

1шт.

36

GM-326

HANDLE

intermediate manifold

1шт.

37

GM-327

LATCH

intermediate manifold handle

1шт.
