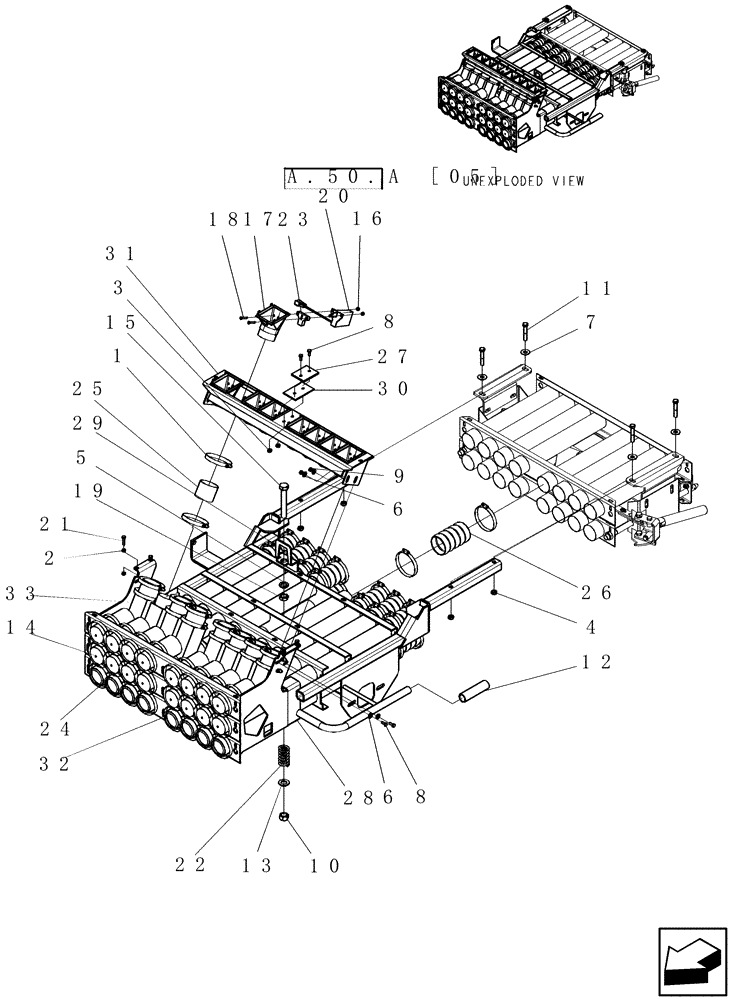

Запчасти Case IH ADX3260 (L.10.F[31]) - ADX3260 MANIFOLD - TBH L - Field Processing

1

214-1444

HOSE CLAMP,58.6mm - 82.5mm

112шт.

2

7770

NUT,Hex, 1/4 - 20, Cl 5

8шт.

3

281010

LOCK NUT,7/8"-14, GC

6шт.

4

280980

NUT,7/16"-14, GC

5шт.

5

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

6

95-21031

WASHER,1/4"

18шт.

7

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

8шт.

8

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

9

280129

NUT,1/4"-20

2шт.

10

280375

NUT,3/4"-10, GC

1шт.

11

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

4шт.

12

3740

HANDLE

plastic - 1" id

1шт.

13

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

14

4731

CAP

vinyl 2 1/2" id x 1" long

16шт.

15

6717

BOLT,Hex, 3/4" - 10 x 5", Gr 5, Full Thd

1шт.

16

9148

LOCK NUT

#10-32, stainless steel

2шт.

17

9475

TUBE

manifold transition, velocity sensor

8шт.

17

425095A1

PLUG

manifold transition - velocity sensor

8шт.

18

7777

SCREW,Pan Hd, #10 - 32 x 1"

mch #10-32 x 1" ph Phillips ss

2шт.

19

86632557

JAM NUT,Jam, 3/4"-10, G5

1шт.

20

13637V2

SENSOR

air flow

1шт.

Refer to A.50.A [05]

1шт.

21

22577

BOLT

1/4"-20 x 1 1/4", G5, all thread

4шт.

22

87506208

COMPRESSION SPRING

5/16" wire 7/8" id x 3l

1шт.

22

87506208

COMPRESSION SPRING

5/16" wire 7/8" id x 3l

1шт.

23

CA-142

SPACER

air velocity sensor

1шт.

24

CA-145

SEAL

center/intermediate manifolds

8шт.

25

GD-602

HOSE,2.50" ID x 2.25"

8шт.

26

GI-198

HOSE,2.75" ID x 6.00"

Meter Box

16шт.

Cut 6" from bulk roll 425460A1

1шт.

26

425460A1

HOSE

2 3/4" id rubber with wire

1шт.

27

GI-221

SPACER

plate blank manifold

1шт.

28

GI-572

MANIFOLD

tow behind - 3rd tank

1шт.

29

GI-718

BOSS

lift

1шт.

30

GL-116

SPACER

plate transition manifold rear

1шт.

31

GL-442

PANEL

mount, transition manifold

1шт.

32

GL-443

MANIFOLD

outlet

3шт.

33

GL-454A

VALVE

assembly, triple shoot

8шт.
