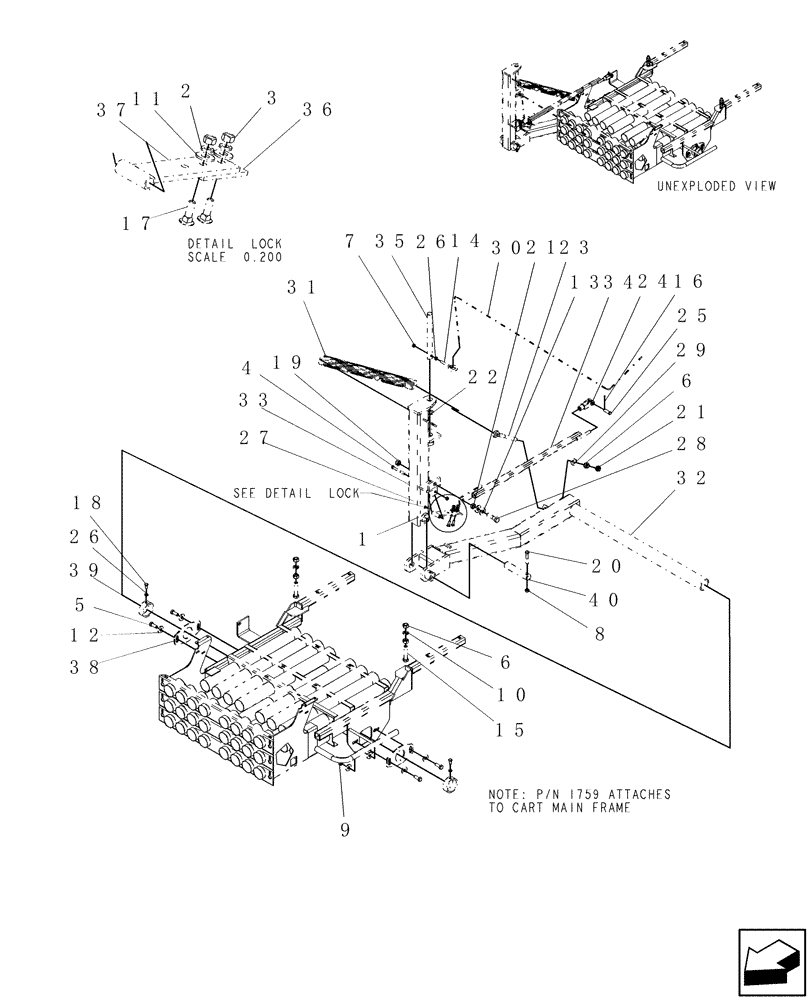

Запчасти Case IH ADX3260 (L.10.F[30]) - ADX3260 MANIFOLD LIFT ARM L - Field Processing

1

88775

LUBE NIPPLE,1/4"-28

1шт.

2

80681

LOCK WASHER,5/16"

2шт.

3

9635082

NUT,5/16" - 18, Gr 5

2шт.

4

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

5

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

6

280374

NUT,Hex, 5/8" - 11, Gr 5

5шт.

7

88902

NUT,3/8"-16

2шт.

8

280980

NUT,7/16"-14, GC

1шт.

9

86992215

LOCK NUT,1/2"-13, GC

4шт.

10

12034871

WASHER

5/8"

2шт.

11

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

12

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

13

18606

WASHER,0.62" ID x 1.47" OD x 0.11" Thk

2шт.

14

425494A1

EYEBOLT

3/8" x 4"

1шт.

15

280807

BOLT,Tap, Hex, 5/8" - 11 x 3", Gr 5

2шт.

16

80755

COTTER PIN,1/8" OD x 1" L

1шт.

17

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

18

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

2шт.

19

85700693

NUT,5/8" - 11, Gr C

1шт.

20

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

1шт.

21

86632556

JAM NUT,Jam, 5/8"-11, G5

2шт.

22

86624168

WASHER,1.03" ID x 1.5" OD x 0.03" Thk

1шт.

23

4269

EYEBOLT

5/8"-11x 7 3/8"

1шт.

24

5216

CLEVIS

yoke 1/2" Thread - 5/8" W x 1 7/8" Throat

1шт.

25

127-220

CLEVIS PIN,1/2" x 1 1/2"

1шт.

26

87016560

JAM NUT,Jam, 3/8"-16, G5

3шт.

27

6630

DECAL

grease 100 hours

1шт.

28

88556

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 5

1шт.

29

87325968

WASHER,0.76" ID x 1.25" OD x 0.14" Thk

3/4" id x 1 1/4" 10ga

1шт.

30

87506437

ROPE

manifold lift

1шт.

31

87505301

TENSION SPRING

.406 x 2 3/8" x 28 1/2"

1шт.

32

GI-194

ARM

fore, manifold

1шт.

33

GI-571

LIFT ARM

pivot manifold

1шт.

34

GI-575

LINK

parallel, manifold - tow between

1шт.

35

GI-589

PIN

manifold

1шт.

36

GI-885

PLATE

lock, adjust

1шт.

37

GI-962

LIFT ARM

lock manifold

1шт.

38

GI-970

PIVOT PLATE

manifold adjust

2шт.

39

GI-973

COLLAR

adjustment

2шт.

40

GL-610

HITCH PIN

rear

1шт.
