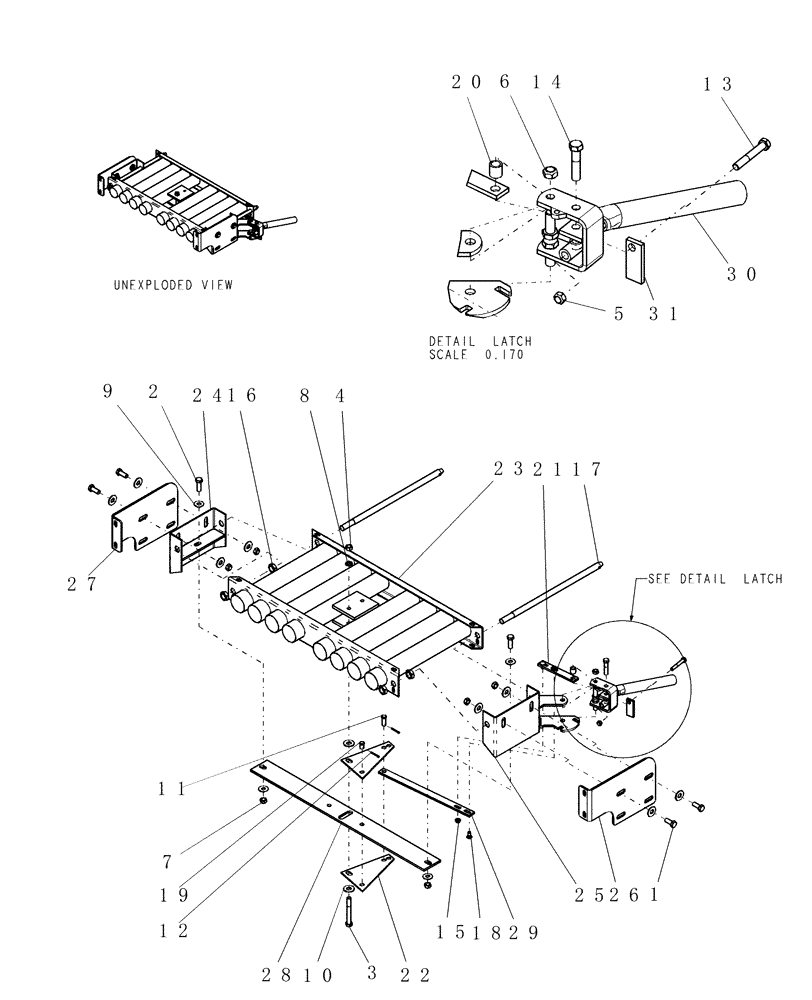

Запчасти Case IH ADX3260 (L.10.F[29]) - ADX3260 INTERMEDIATE MANIFOLD L - Field Processing

1

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

6шт.

2

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

3

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

4

280431

NUT,1/2"-13, G5

1шт.

5

88902

NUT,3/8"-16

1шт.

6

280980

NUT,7/16"-14, GC

2шт.

7

86992215

LOCK NUT,1/2"-13, GC

6шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

9

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

4шт.

10

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

10шт.

11

1841

CLEVIS PIN

1/2" x 1 1/4"

1шт.

12

80755

COTTER PIN,1/8" OD x 1" L

2шт.

13

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

14

280117

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

15

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

16

86632557

JAM NUT,Jam, 3/4"-10, G5

4шт.

17

412781A1

STUD

3/4"-10 x 18 1/4"

2шт.

18

51200045

CARRIAGE BOLT

5/16"-18 x 3/4", G5

2шт.

19

GH-145

CLEVIS PIN

1/2" x 11/16"

1шт.

20

GH-250

SPACER

actuator arm

1шт.

21

GH-251

ARM

actuator short

1шт.

22

GH-253

PLATE

actuator intermediate manifold

2шт.

23

GI-363

MANIFOLD

intermediate

1шт.

24

GI-612

BRACKET

intermediate manifold mount RH

1шт.

25

GI-959

BRACKET

intermediate manifold mount LH

1шт.

26

GI-968

SIDE PLATE

intermediate manifold LH

1шт.

27

GI-969

SIDE PLATE

intermediate manifold RH

1шт.

28

GL-449

PLATE

crossmember, intermediate manifold

1шт.

29

GL-450

POWER ARM

long

1шт.

30

GM-326

HANDLE

intermediate manifold

1шт.

31

GM-327

LATCH

intermediate manifold handle

1шт.
