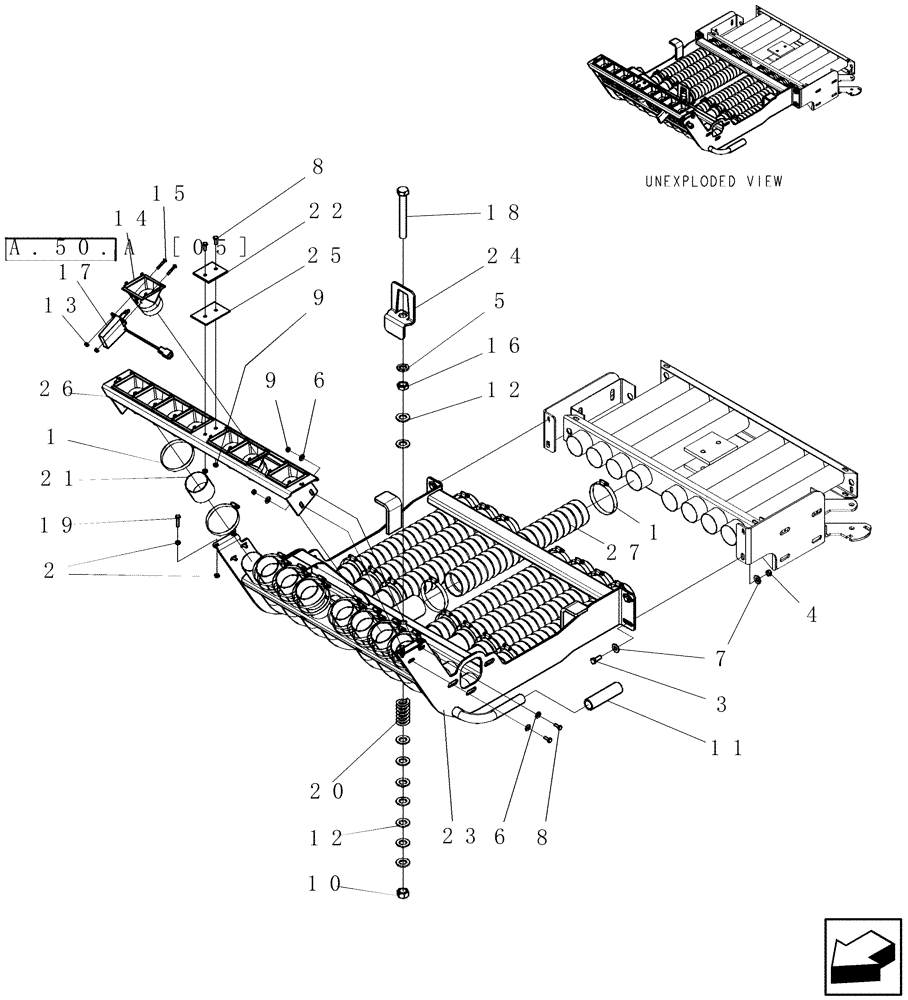

Запчасти Case IH ADX3260 (L.10.F[28]) - ADX3260 MANIFOLD - TBT L - Field Processing

1

214-1444

HOSE CLAMP,58.6mm - 82.5mm

32шт.

2

7770

NUT,Hex, 1/4 - 20, Cl 5

8шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

4

88902

NUT,3/8"-16

4шт.

5

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

6

95-21031

WASHER,1/4"

8шт.

7

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

8

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

9

280129

NUT,1/4"-20

6шт.

10

280375

NUT,3/4"-10, GC

1шт.

11

3740

HANDLE

plastic - 1" id

1шт.

12

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

9шт.

13

9148

LOCK NUT

#10-32, stainless steel

2шт.

14

9475

TUBE

manifold transition, velocity sensor

8шт.

15

7777

SCREW,Pan Hd, #10 - 32 x 1"

mch #10-32 x 1" ph Phillips ss

2шт.

14

425095A1

PLUG

manifold transition - velocity sensor

8шт.

16

86632557

JAM NUT,Jam, 3/4"-10, G5

1шт.

17

13637V2

SENSOR

air flow

1шт.

Refer to A.50.A [05]

1шт.

18

21478

BOLT,Hex, 3/4" - 10 x 6", Gr 5, Full Thd

1шт.

19

22577

BOLT

1/4"-20 x 1 1/4", G5, all thread

4шт.

20

87506208

COMPRESSION SPRING

5/16" wire 7/8" id x 3l

1шт.

20

87506208

COMPRESSION SPRING

5/16" wire 7/8" id x 3l

1шт.

21

GD-602

HOSE,2.50" ID x 2.25"

1шт.

22

GI-221

SPACER

plate blank manifold

1шт.

23

GI-626

MANIFOLD

tow between - 3rd tank

1шт.

24

GI-971

BOSS

lift

1шт.

25

GL-116

SPACER

plate transition manifold rear

1шт.

26

GL-442

PANEL

mount, transition manifold

1шт.

27

GL-893

HOSE

2 3/4" x 20" meter box pressurization

8шт.

Cut 20" from bulk hose 425460A1

1шт.

27

425460A1

HOSE

2 3/4" id rubber with wire

1шт.
